1999-2006 BMW 3-SERIES SEDAN DOOR PANELS

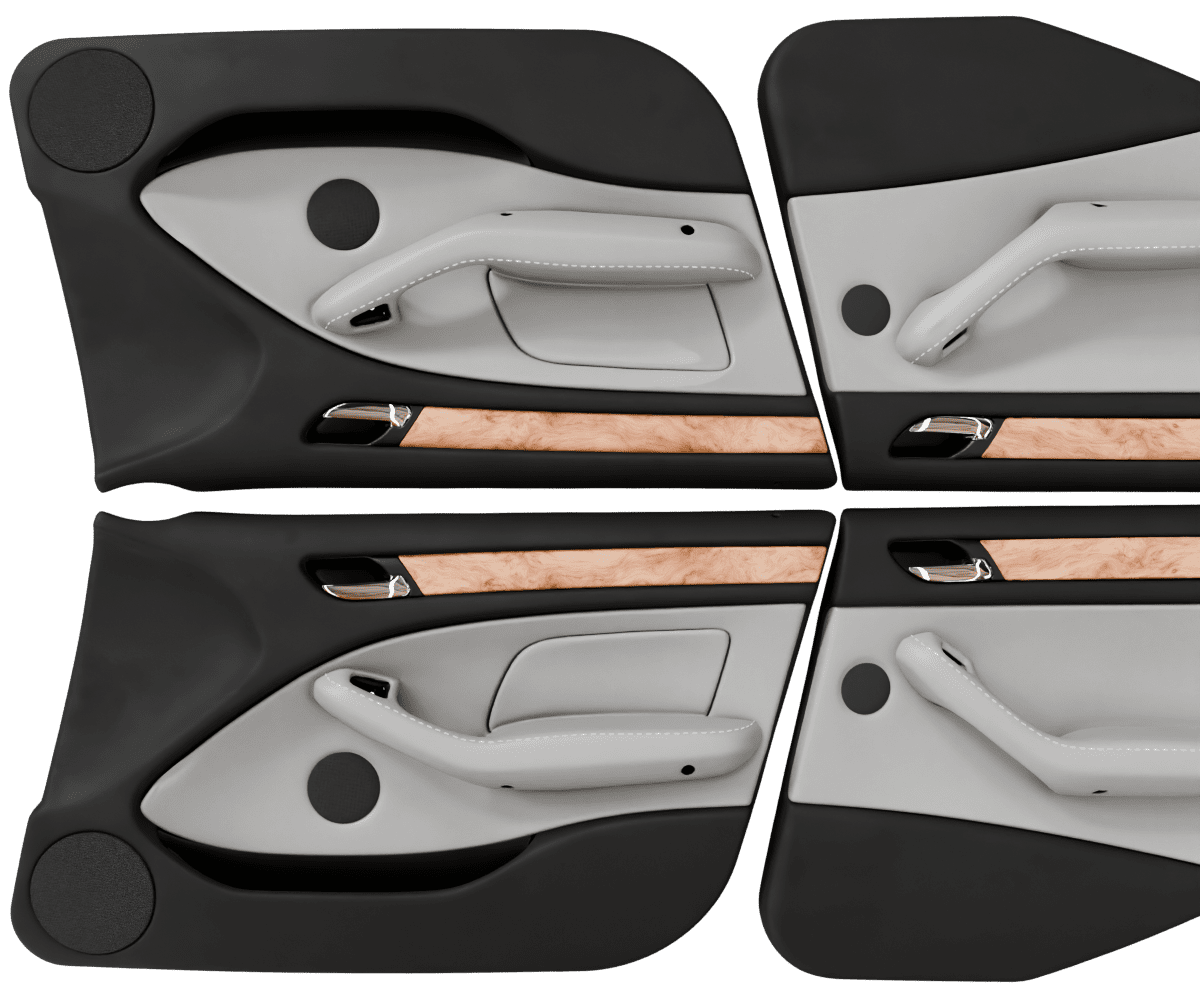

BMW E46 Sedan Alcantara Door Panels

Custom-made to order in premium Alcantara (or your choice of materials), built on OEM cores for perfect fitment. These are OEM-direct replacements for the E46 4-door (Sedan) and match factory mounting points, clips, and airbag clearances.

Part Numbers

• Front Left Door Trim Panel — 51418009077 (supersedes 51418014293) Source: RealOEM
• Front Right Door Trim Panel (side airbag) — 51418009074 Source: RealOEM
• Rear Left Door Trim Panel — 51428009075 (supersedes 51420028463) Source: RealOEM
• Rear Right Door Trim Panel — 51428009076 (supersedes 51420028464) Source: RealOEM
• Rear Left Door Trim Panel (with rear side airbags S261A) — 51428009079 Source: RealOEM
• Rear Right Door Trim Panel (with rear side airbags S261A) — 51428009080 Source: RealOEM

Common factory upholstery variants (examples) for front panels: Black leather (Montana) 51418224595/596, Hellbeige (Montana) 51418224599/600, Imitation leather black 51418232627/628. Diagram group • Variant listing (BMWFans)

Example retail listing reference: Rear Right panel 51428232630 BMWPartsDeal.

Compatibility with other chassis'

These door panel assemblies apply to the E46 Sedan and share cross-references with many E46 Touring (wagon) models across 316i–330i trims (market dependent). Coupé/Convertible (2-door) panels are different. Cross-reference details.

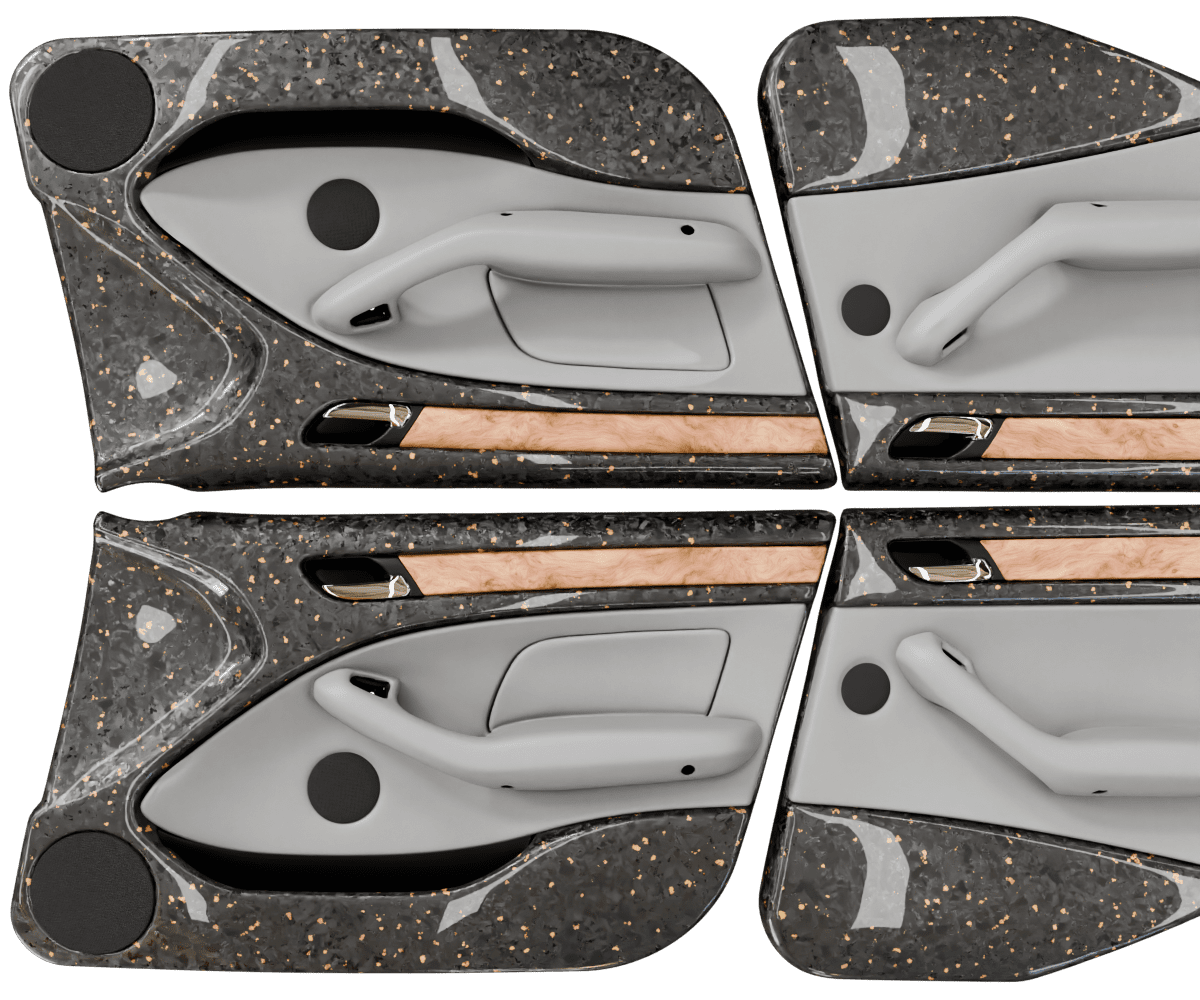

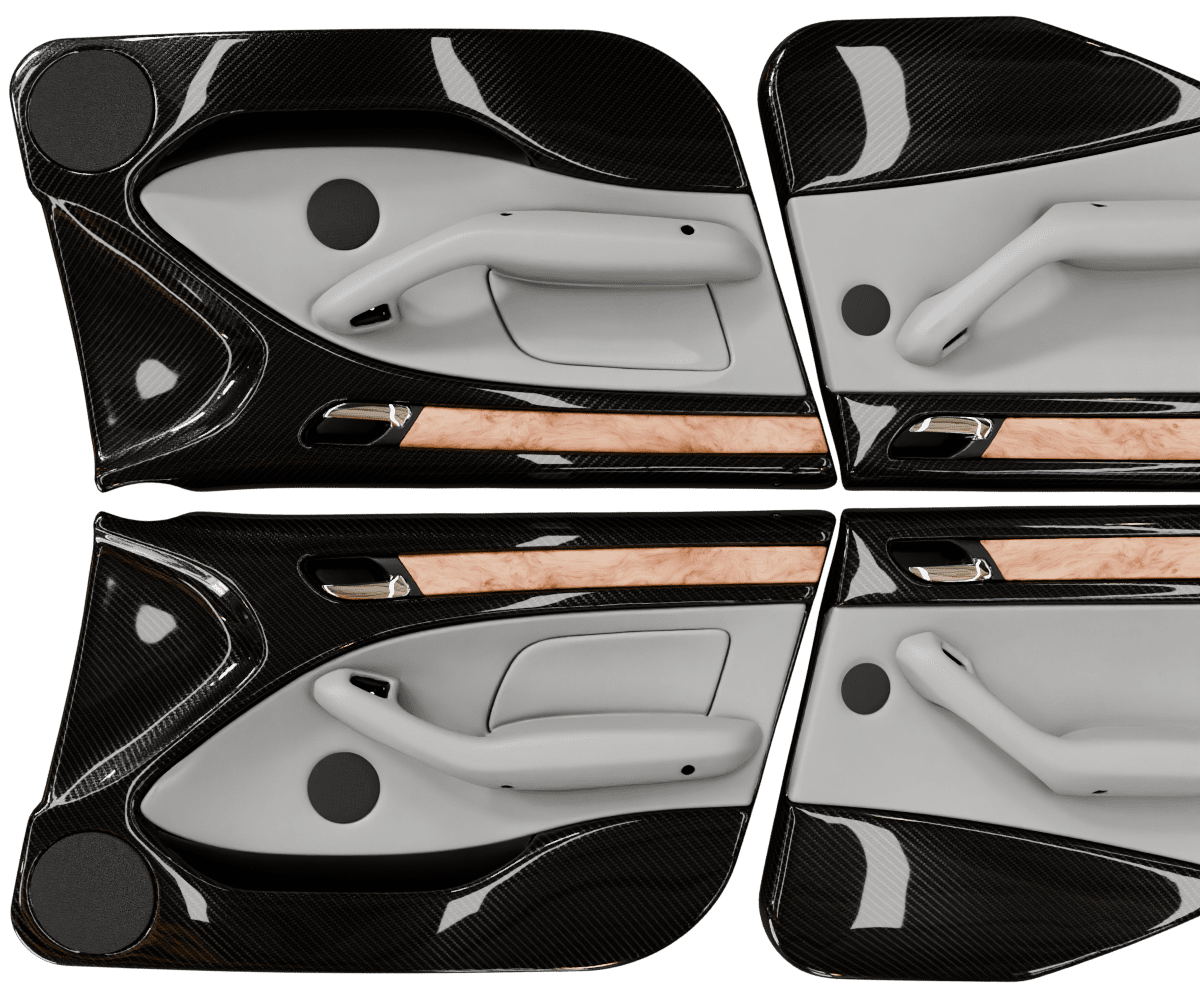

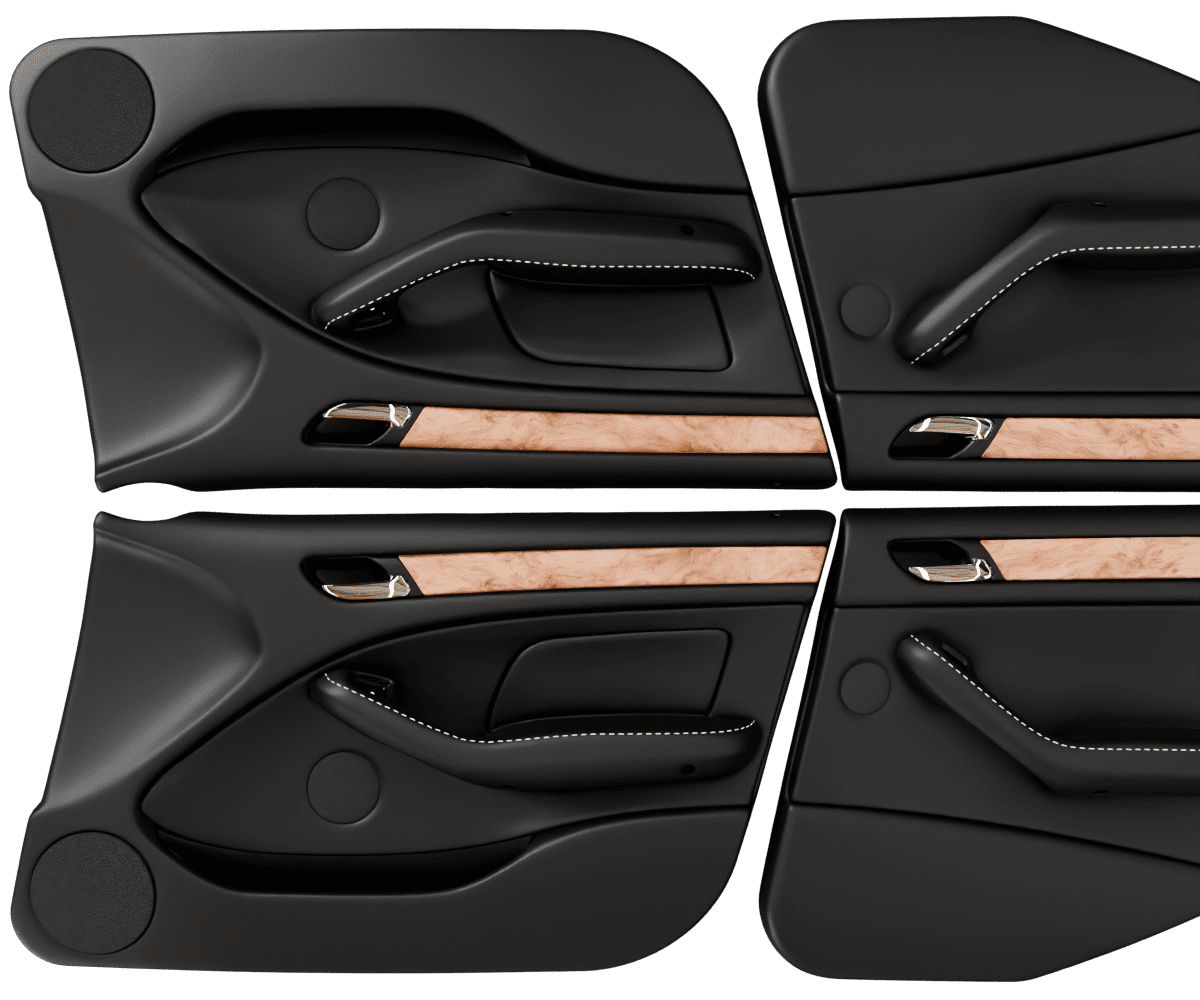

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We upholster each panel to spec: OEM stitch patterns, foam backing refresh as needed, and optional inserts in Alcantara, Nappa leather, carbon fiber, or forged carbon. Your order is built on factory cores (or yours), so fit and airbag clearances remain OEM.

Installation tools needed

• T20 Torx driver (primary door panel fasteners) Guide • iFixit
• (Sometimes) T30 Torx for ancillary screws Video reference
• Plastic interior trim tool kit for popping clips without marring Source
• Small pick or flat screwdriver (connector tabs) Source
• Replacement door panel clips (e.g., 51418224768) if originals are brittle Clip refs

OEM+ parts, Direct swap of OEM parts

Our finished panels reinstall using the original fasteners and clip locations. Because we build on OEM cores and maintain correct backing and clearances, these are true direct-swap replacements for E46 Sedan (and many Touring) trims noted above. Always confirm by VIN for exact color/option variants in the RealOEM diagrams linked above.
