Custom 2006-2013 BMW 3-SERIES E90 CENTER CONSOLE NON-M CCC

BMW E9X CCC Center Console Wood Trim

Part Numbers

Here are known OEM part numbers for the CCC (pre-CIC) center console wood trim / decorative bezel:

• 51-16-7-137-484 — OEM walnut center console trim (E90/E91)
• 51-16-7-137-484 is commonly referenced in listings for E90/E91 CCC models
• 51-16-7-137-484 appears in BMW parts marketplaces as the CCC console wood panel
• 51-16-7-137-484 (same part number listed) for E90/E91 walnut iDrive center console wood trim
• 51-16-7-139-850 / 51167898850 — another console trim part number linked to CCC iDrive center console trim, e.g. on E90 / E92 M3 listing

Compatibility with other chassis’

These trim pieces are primarily used on the **E9X** family (E90, E91, E92, E93) with the **CCC (Classic-Car Communication) iDrive** system (pre-CIC generation). The part 51-16-7-137-484 is often referenced for E90/E91 CCC iDrive models. :contentReference[oaicite:5]{index=5}

The alternate 51167898850 is listed in some sources for E90/E92 M3 CCC iDrive trim.

Note: not all E9X models use CCC (some later models are CIC), and trim variations exist (e.g. different wood finishes, control layouts). Always confirm fitment by VIN or compare your existing trim’s mounting points and connector pattern.

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

Our version is a **custom-made direct replacement** of the OEM center console wood trim. You get the same mounting points, same geometry, but with your choice of high-end finishes:

• Alcantara (suede-feel) wrap over the base structure

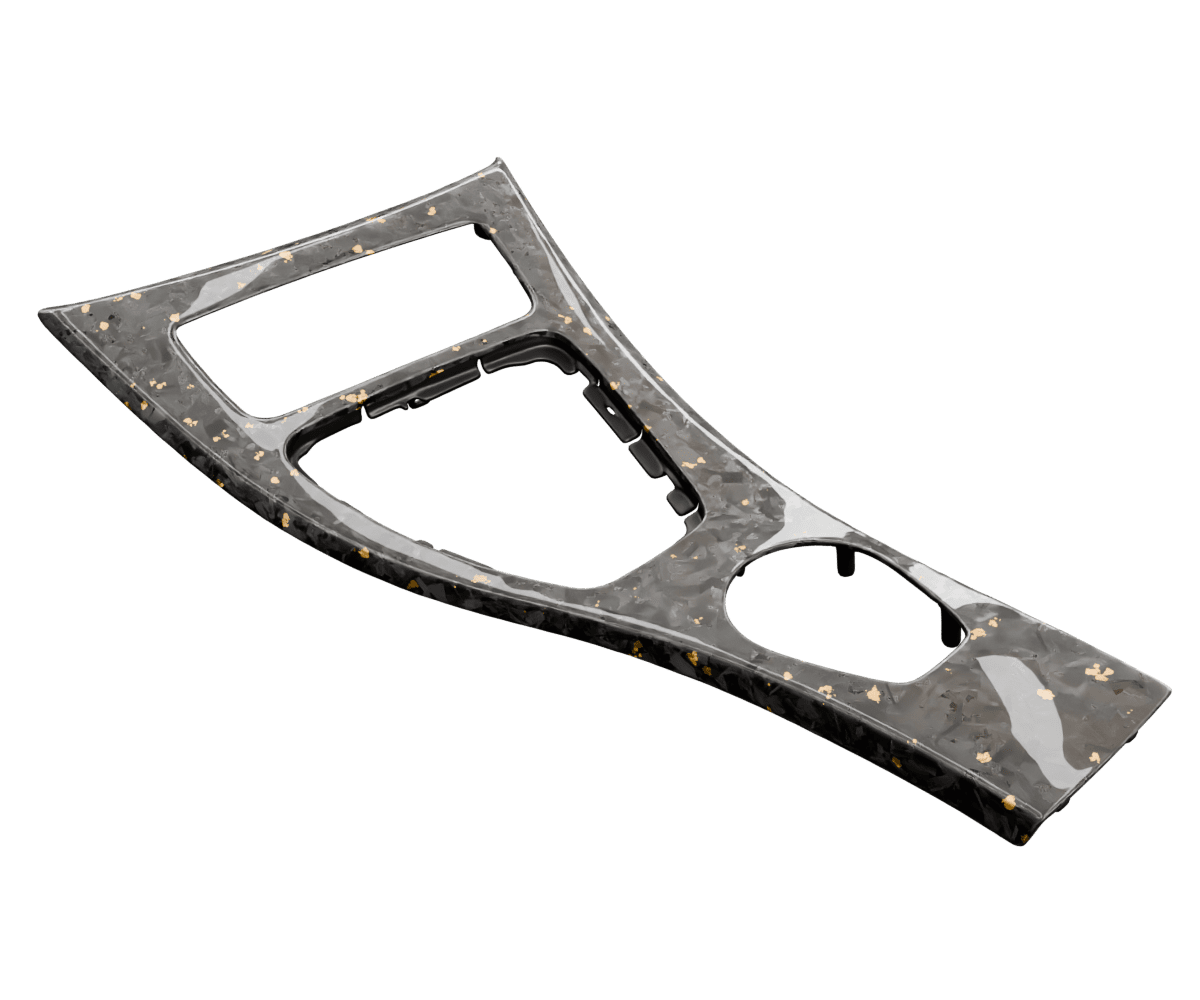

• Forged carbon fiber or forged carbon fiber flakes

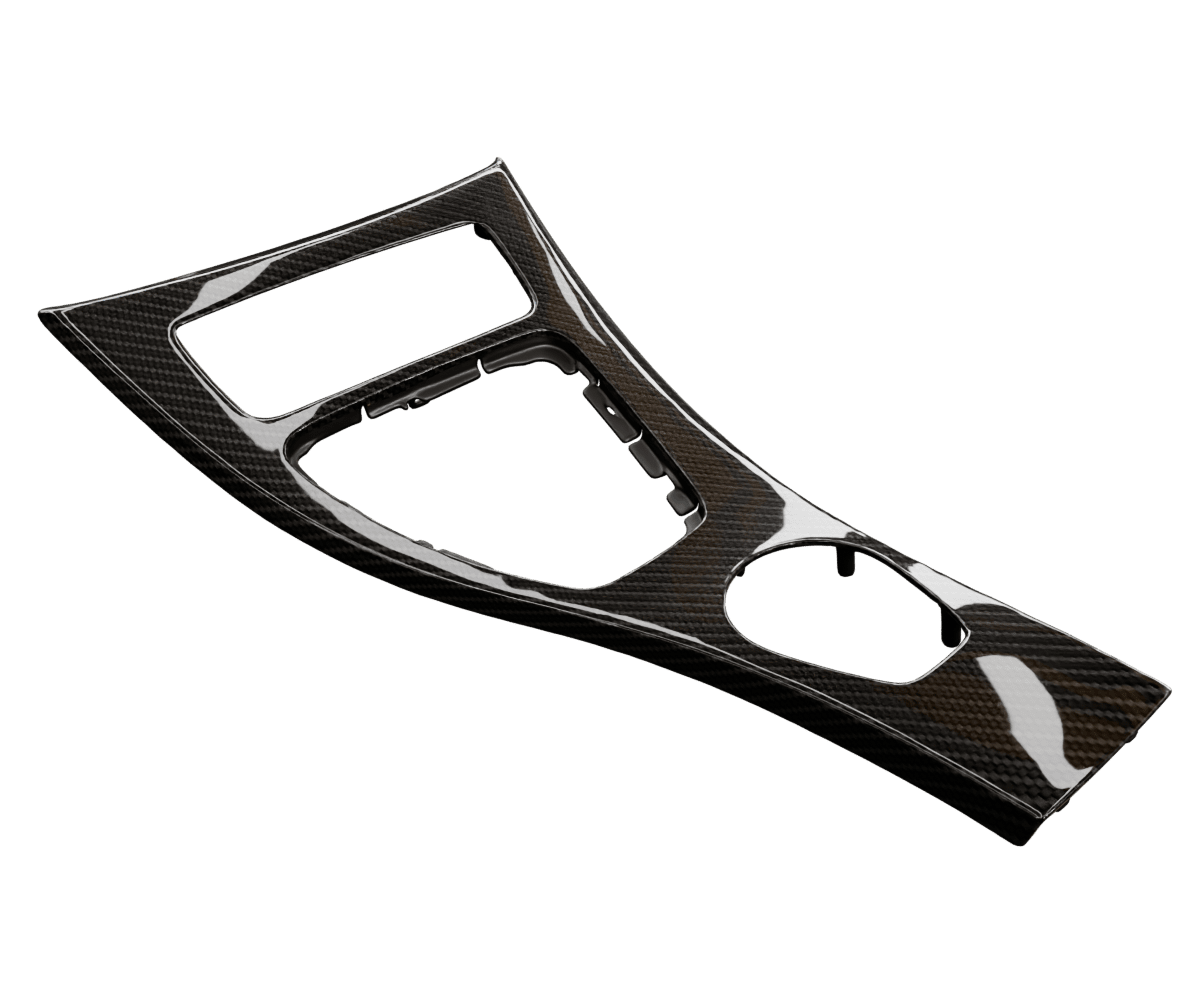

• Plain carbon fiber (gloss or matte)

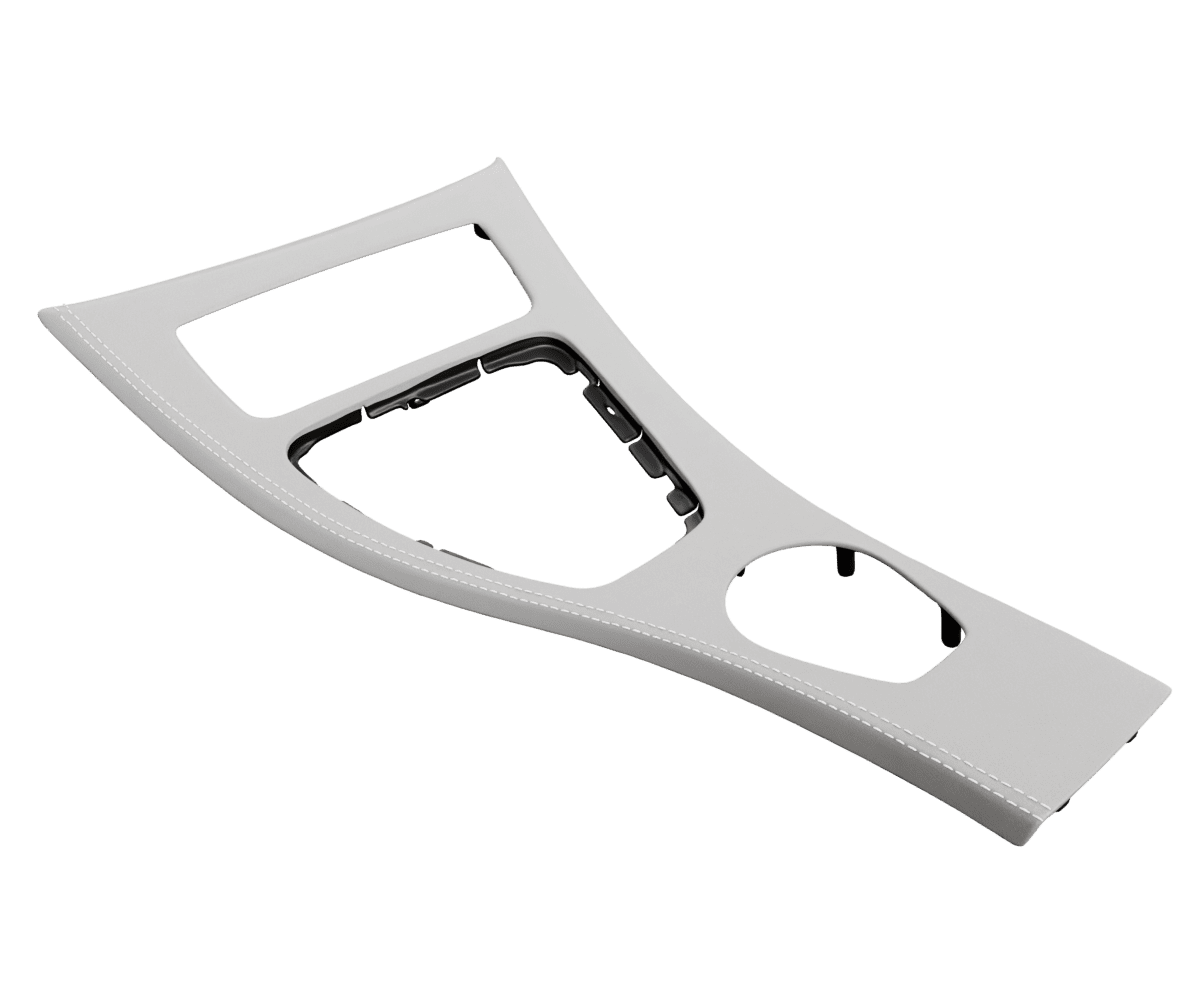

• Nappa leather (premium soft leather) variant

Because we build to the OEM spec, our part is an **OEM direct replacement** — you can swap it into your car with no modifications needed (aside from removing your stock panel). The custom finishes are applied over the OEM-compatible base so fitment remains precise.

Installation tools needed

• Plastic trim removal tools / pry tools
• Torx driver set (commonly T20, T25) or the specific Torx bit used by BMW for console screws
• Phillips & flathead screwdrivers
• Pliers (for clips, connectors)
• Microfiber cloth and isopropyl alcohol (for cleaning mating surfaces)
• Optional: double-sided 3M adhesive tape (if trim edges need extra bonding) or trim adhesive

OEM parts, Direct swap of OEM parts

This trim piece is built to match OEM dimensions, tabs, and screw points, making it a **direct swap** for the OEM part number (such as 51-16-7-137-484 or 51167898850). You don’t need to alter your console or dash. Just remove your stock trim, transfer any clips or hardware, and install the new one. It’s that straightforward.
