BMW 3-Series Alcantara Wood Trim (M DCT CIC)

Upgrade or refresh your 2006–2013 BMW 3-Series E9x interior with custom-made Alcantara over OEM wood trim. Each piece is an OEM direct-replacement core refinished to your spec, so factory fitment is preserved while you get a premium bespoke finish.

Part Numbers

• Center console trim (non-M, CiC iDrive cutout): 51167898999 — fits E90/E91/E92/E93; reference listings/spec pages for verification ECS Tuning, Turner Motorsport, BimmerWorld.
• M3 DCT center console cover (CiC iDrive): 51167903962 — E9x M3 DCT; cross-refs: 51-16-7-903-962 ECS Tuning, Turner Motorsport, eBay OEM listing.
• Dash trim — right (wood): 51457132851 (aka 7132851) — E90/E91; examples: Hermes Auto Parts, eBay.
• Dash trim — left (wood): 51457132853 (aka 7132853) — E90/E91; examples: recycleBMWs, eBay.
• Front door trim — left (wood): 51457121471 (aka 7121471) — E90/E91; example listings: eBay.
• Front door trim — right (wood): 51457121472 (aka 7121472) — E90/E91; OEM reference: ML Performance, eBay.
• Rear door trim — left (wood): 51457121475 (aka 7121475) — E90/E91; references: Hermes Auto Parts, eBay.
• Rear door trim — right (wood): 51457121476 (aka 7121476) — E90/E91; example listings: eBay, eBay.

General BMW parts catalog reference for confirming VIN-specific fitment: RealOEM.

Compatibility with other chassis'

E9x M3 DCT console (51167903962): Fits 2008–2013 E90/E92/E93 M3 with DCT and CiC iDrive. Sources list fitment across E90N/E92N years; verify by VIN before ordering. ECS, eBay OEM entry.

Non-M console (51167898999): Listed across E90/E91/E92/E93, including 335is; check trim level and controller type (CiC vs CCC). ECS Tuning, Turner Motorsport.

Dash & door wood trims (51457-/51417- numbers): Used across E90/E91 sedan/wagon; multiple listings indicate interchange among 323i/325i/328i/330i/335i (and M3 dash pieces), but verify finish code and LHD/RHD. References: Hermes Auto Parts, ML Performance, eBay.

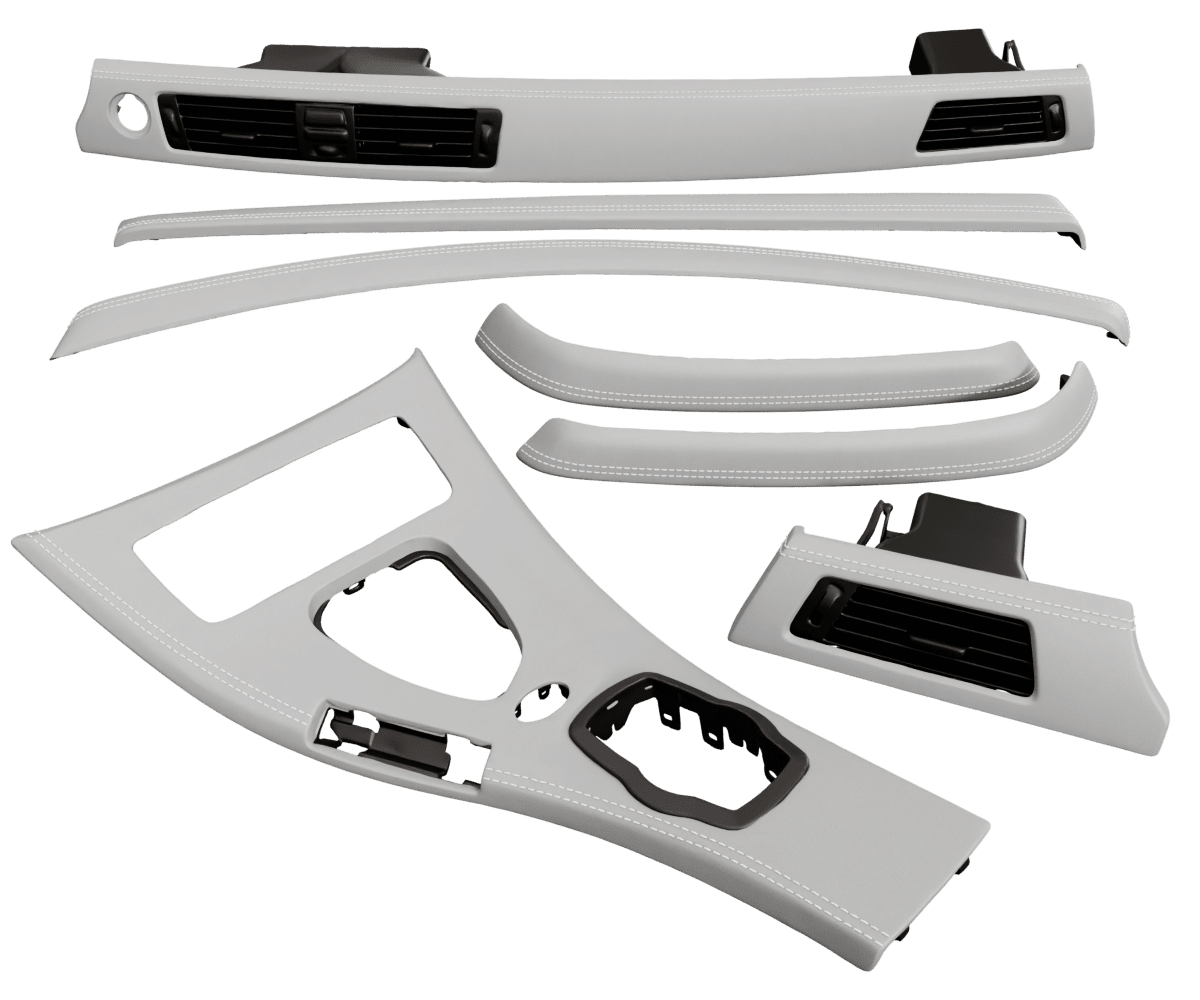

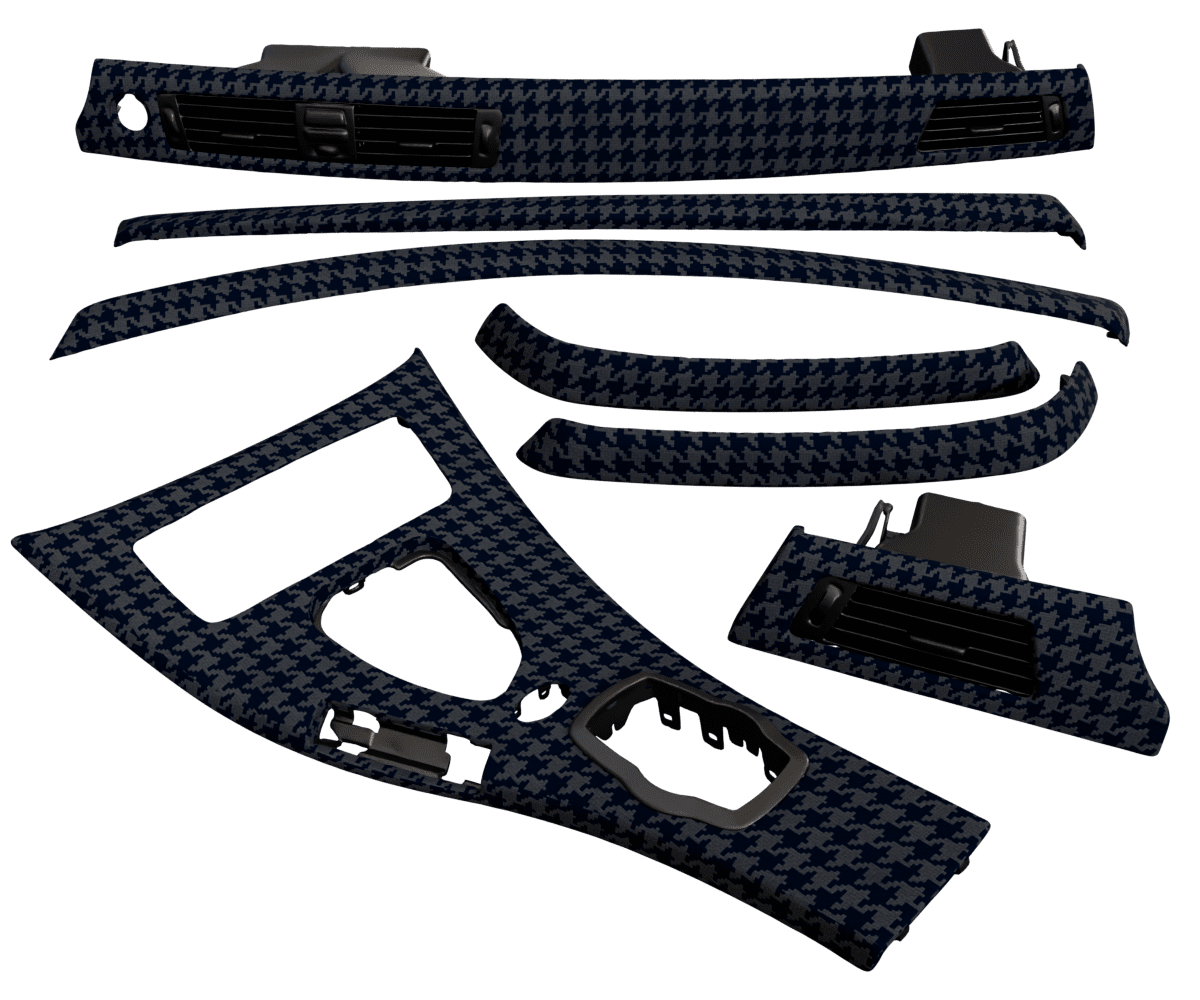

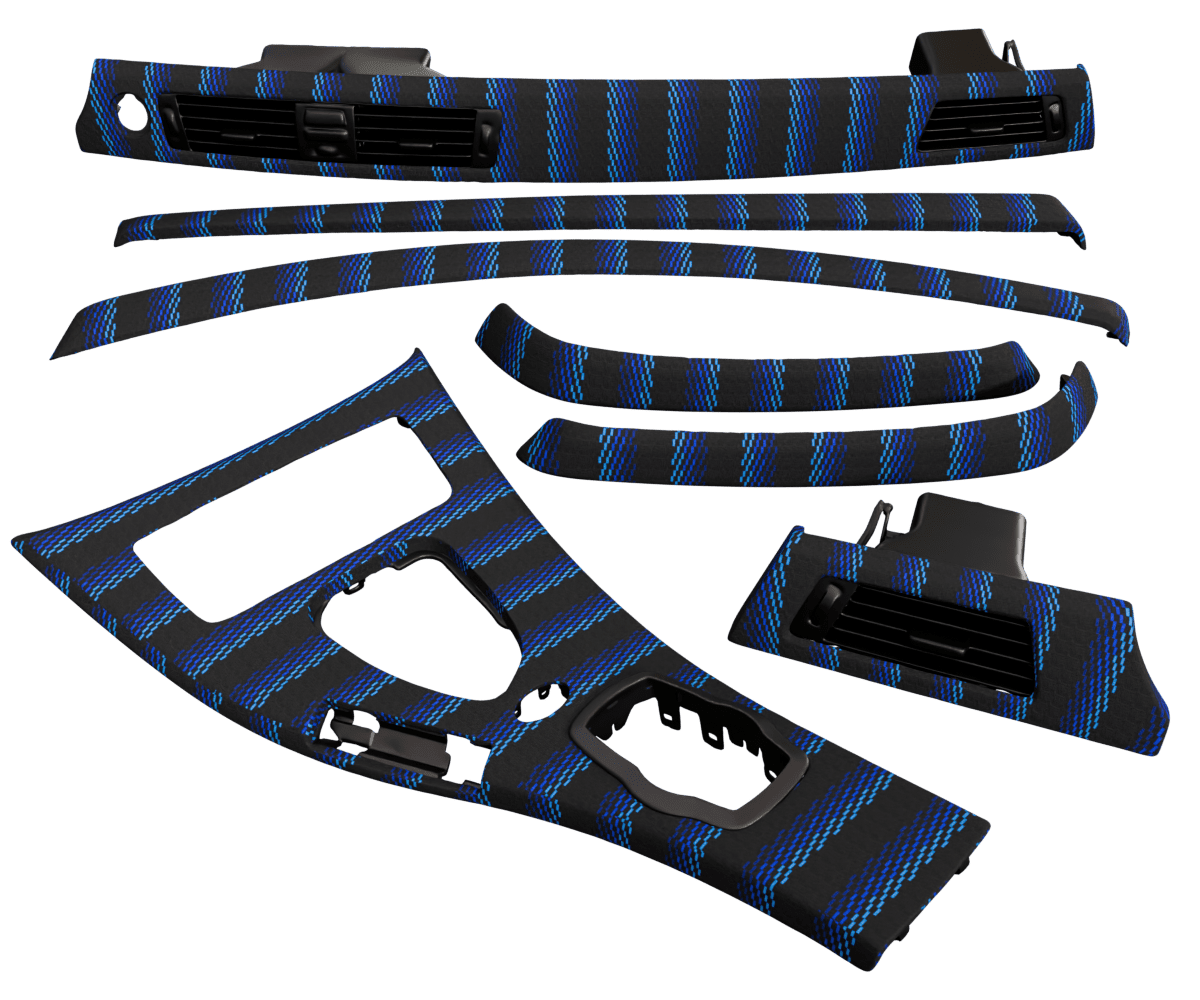

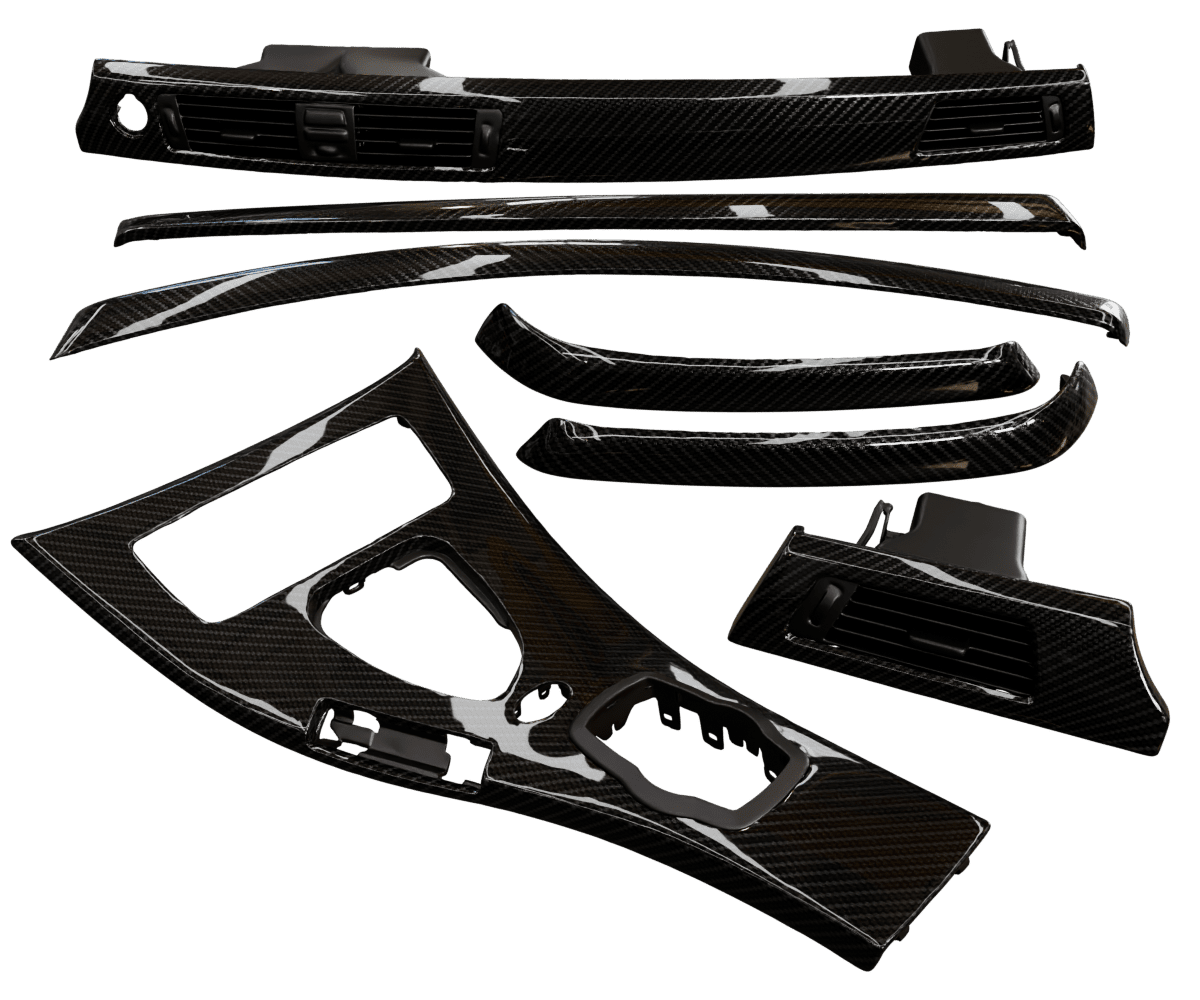

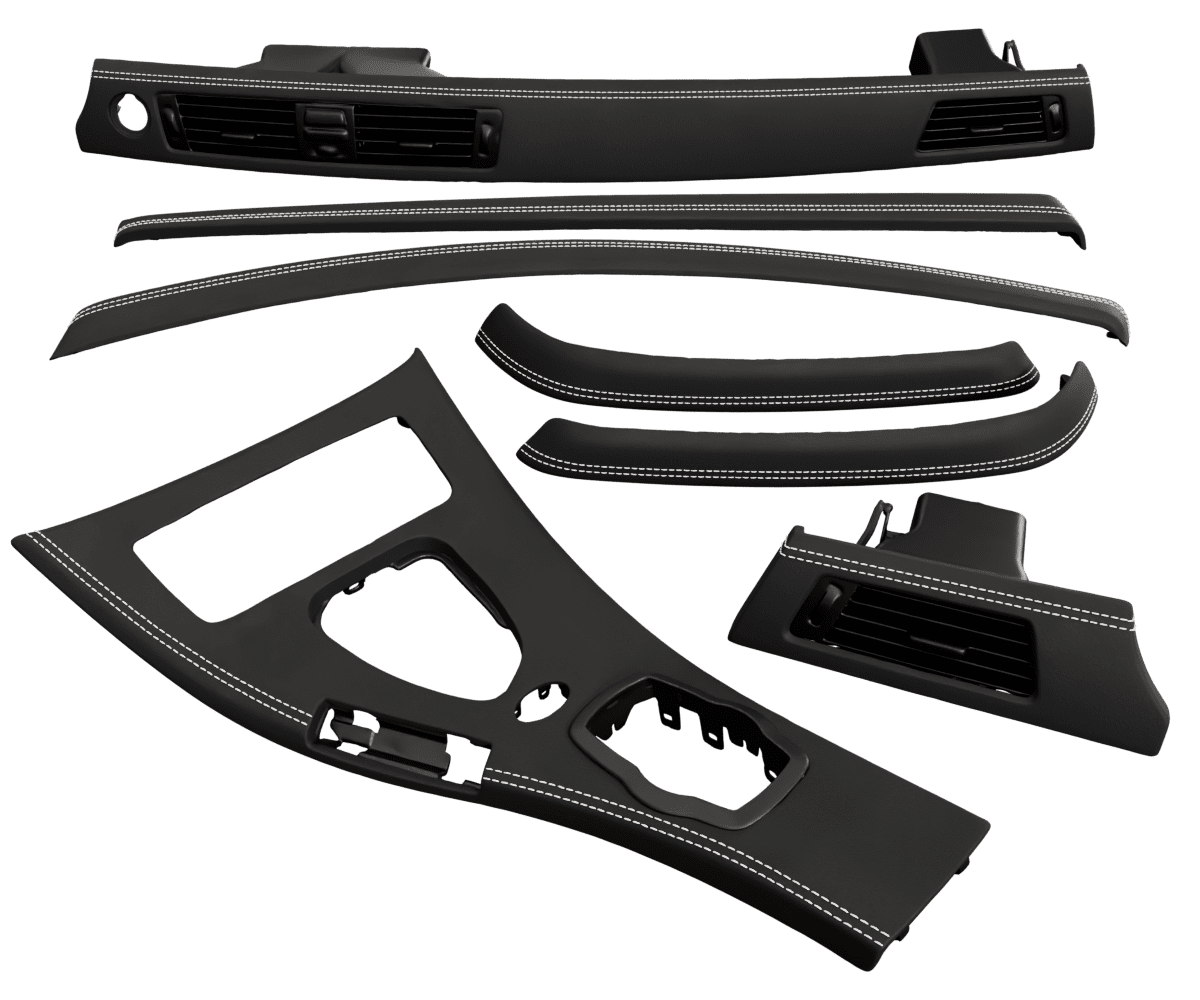

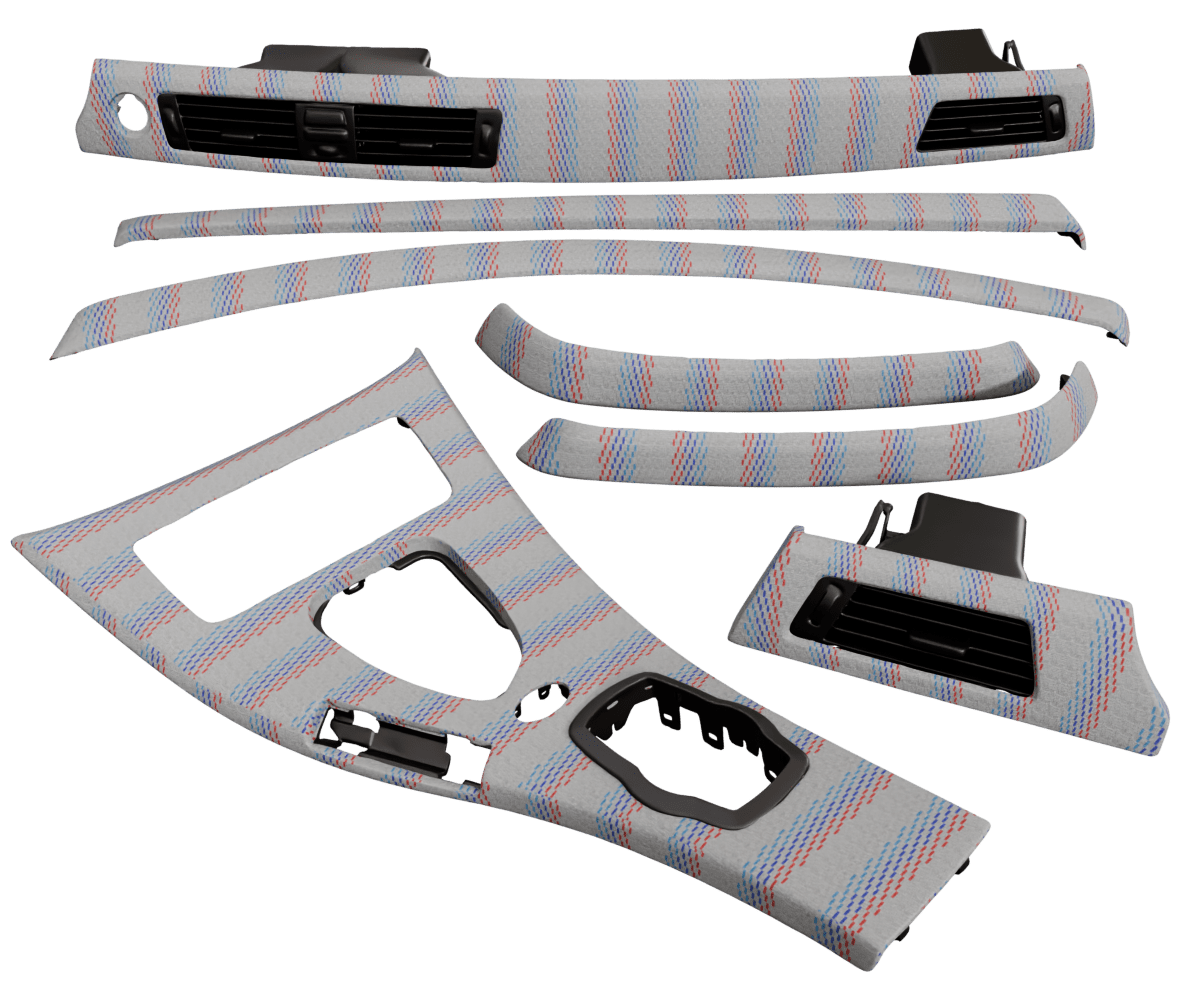

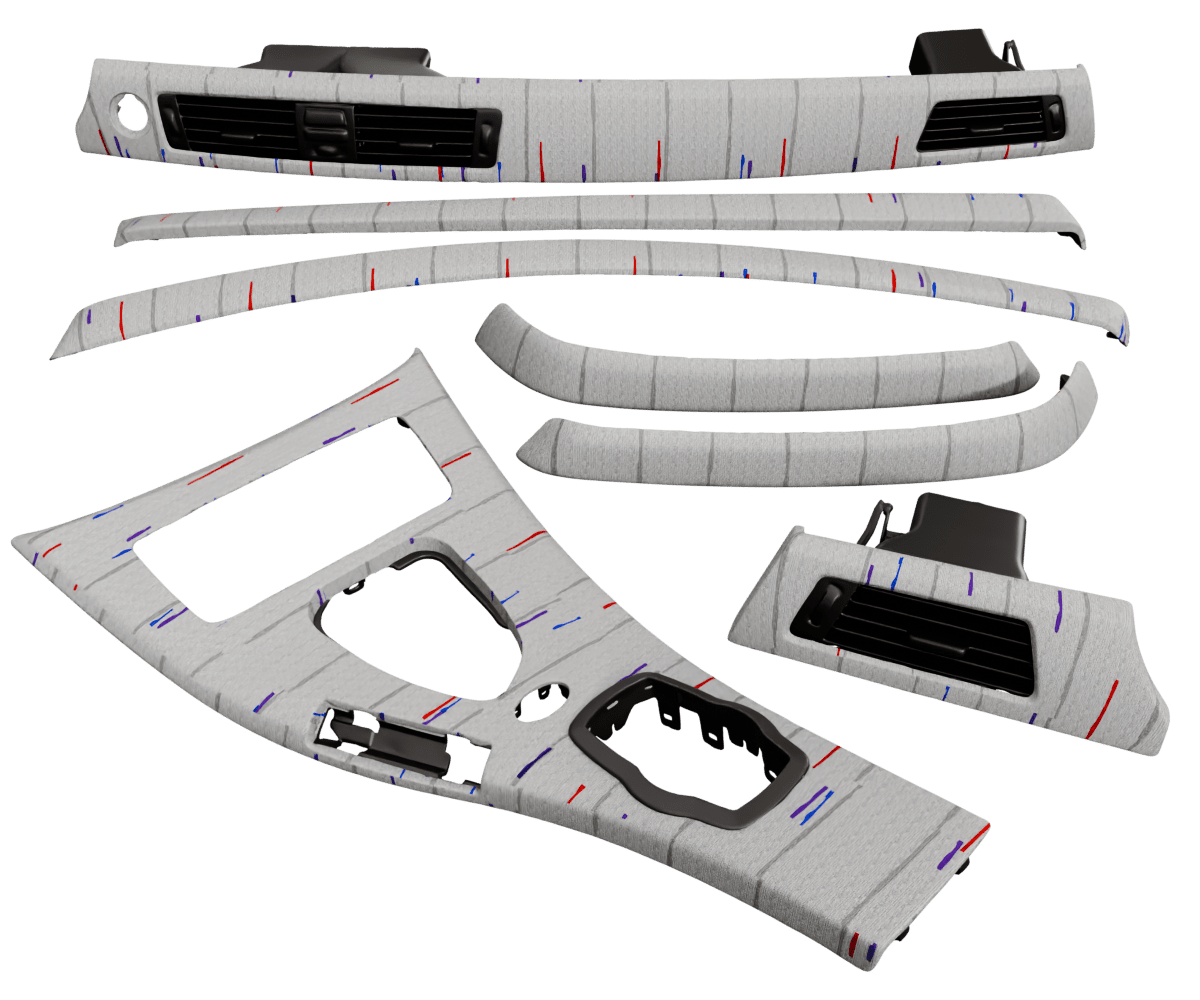

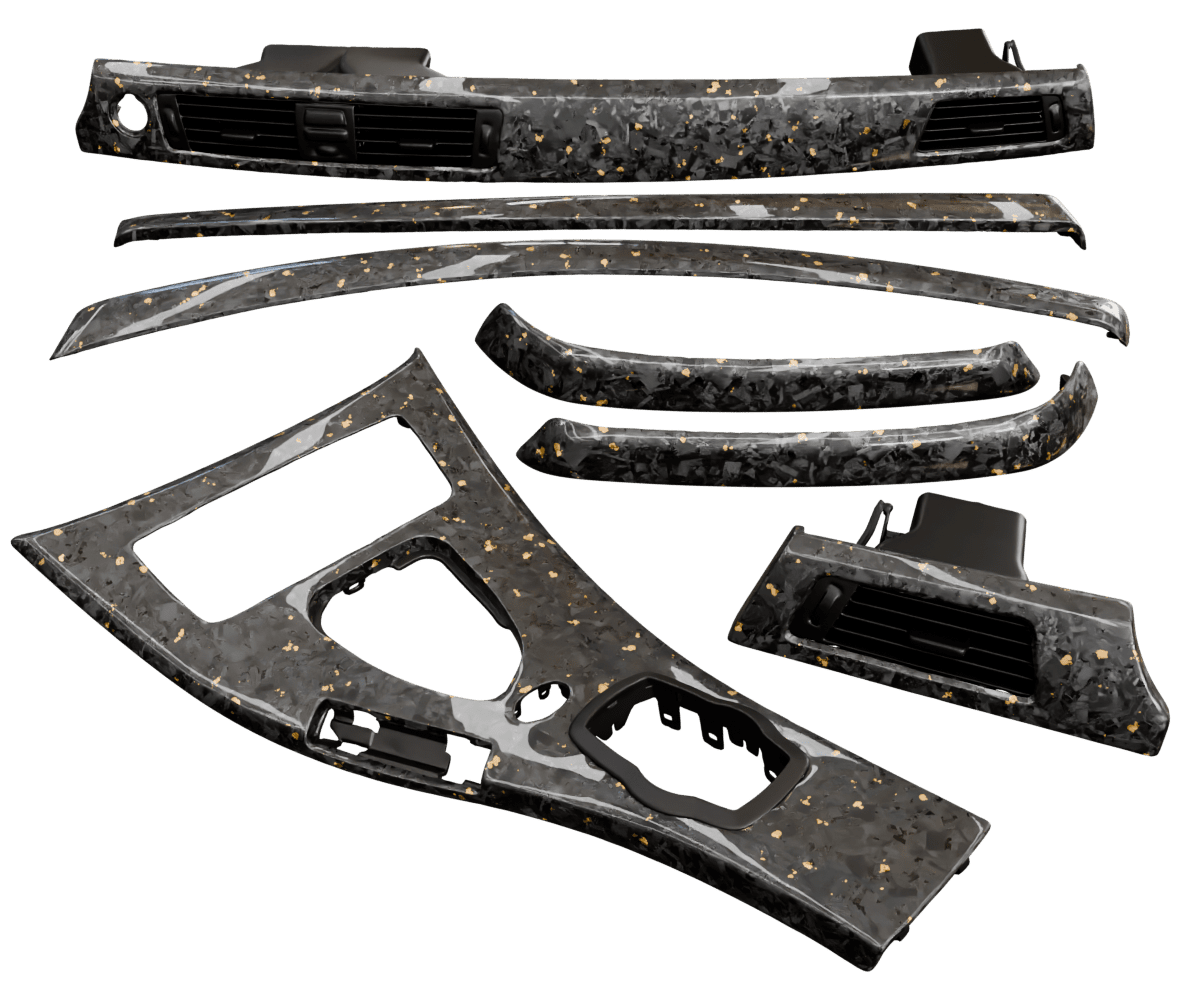

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We rewrap genuine BMW cores in your choice of premium Alcantara, forged carbon fiber, traditional carbon fiber, or Nappa leather. Because we start with OEM cores, all clips, tabs, and geometry remain factory-correct for a clean OEM+ installation. Every set is built to order and can be tailored (stitch color, weave, finish) to match your interior.

Installation tools needed

• Plastic trim removal tools
• T20 Torx driver (and T15/T25 as needed)
• 8 mm and 10 mm sockets with extension/ratchet
• Small pick or flat plastic spudger for clip release
• Microfiber towels and masking tape to protect surfaces
• Optional: isopropyl alcohol for wipe-down before install

OEM+ parts, Direct swap of OEM parts

All items listed above are genuine BMW part numbers. Our refinished sets mount using the original hardware and clip locations. For absolute compatibility, confirm via VIN using BMW’s catalog tools and the linked resources before ordering. RealOEM.
