2006-2013 BMW 3-SERIES E90 WOOD TRIM NON-M CCC

Name: 2006-2013 BMW 3-SERIES E90 WOOD TRIM NON-M CCC
Brand: BaesicPerformance
Price: 440.00 USD
Availability: InStock

$440.00

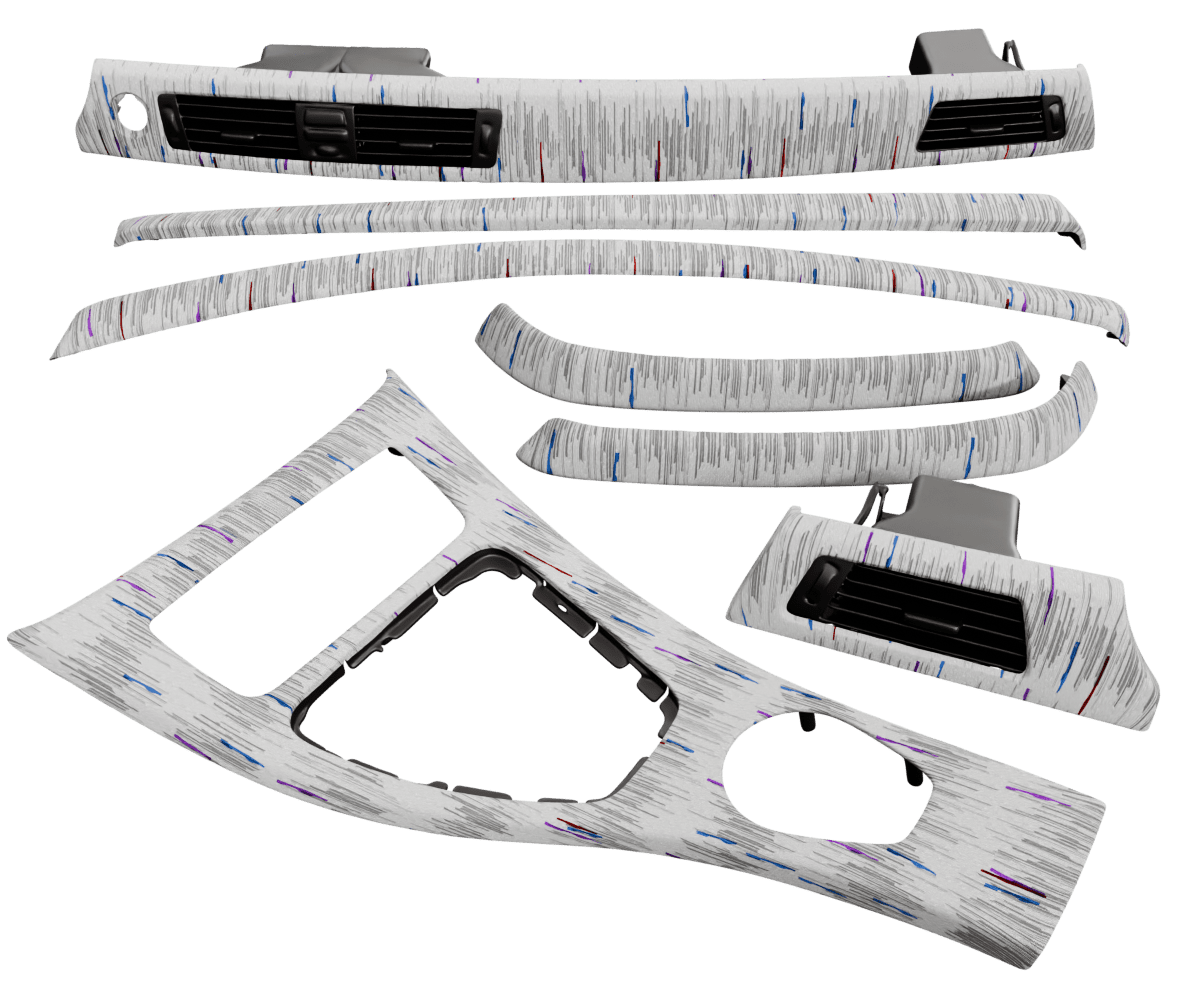

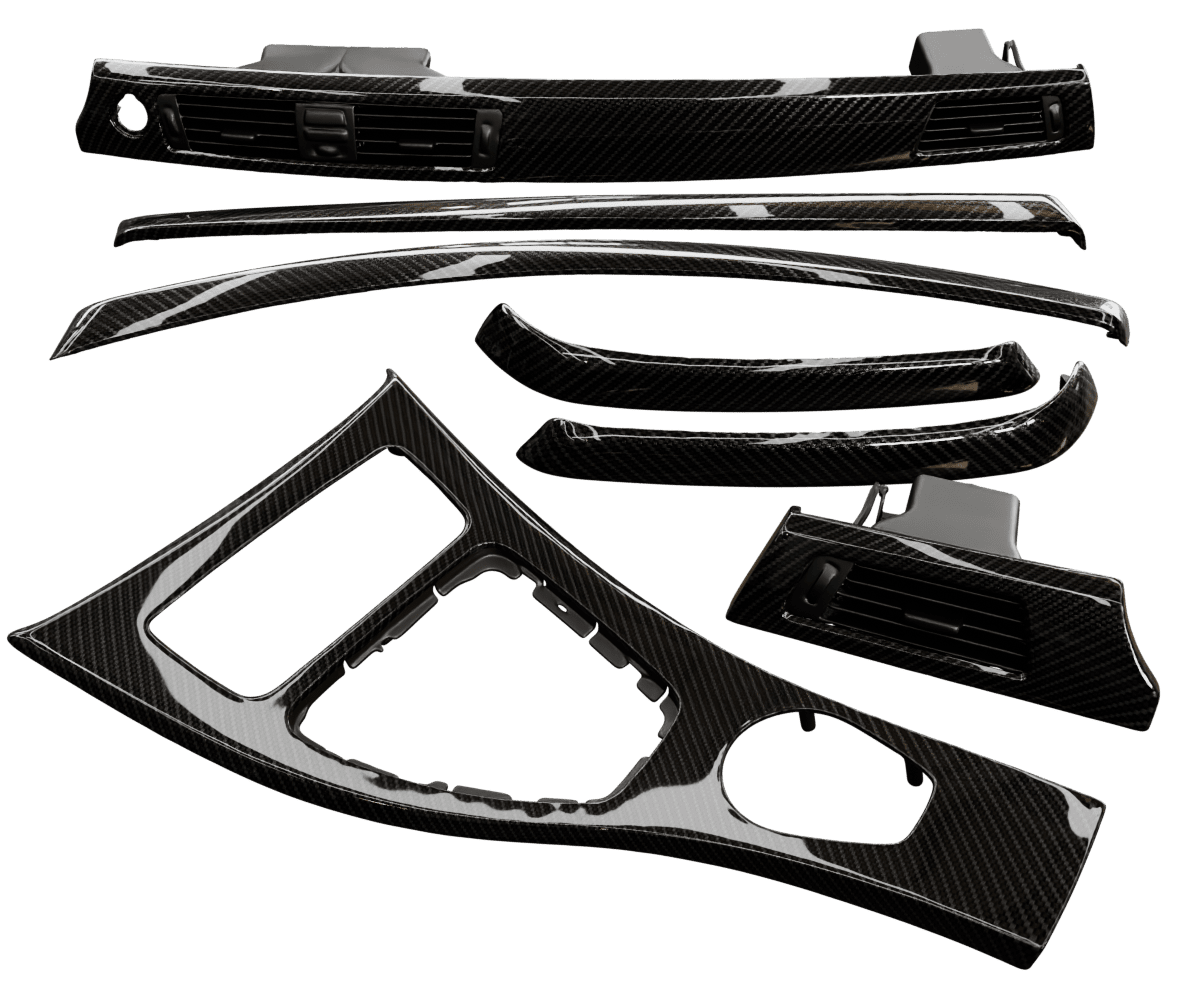

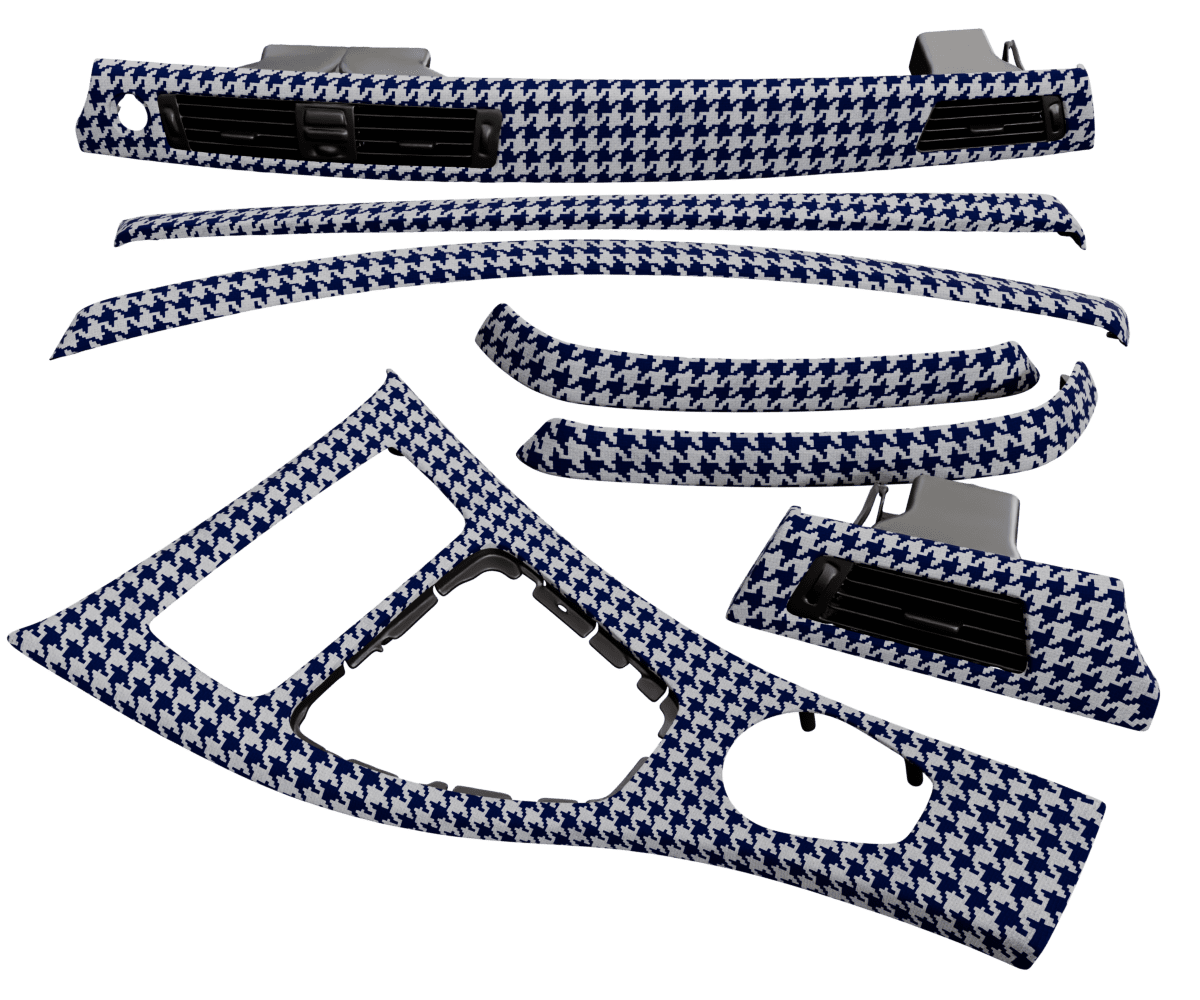

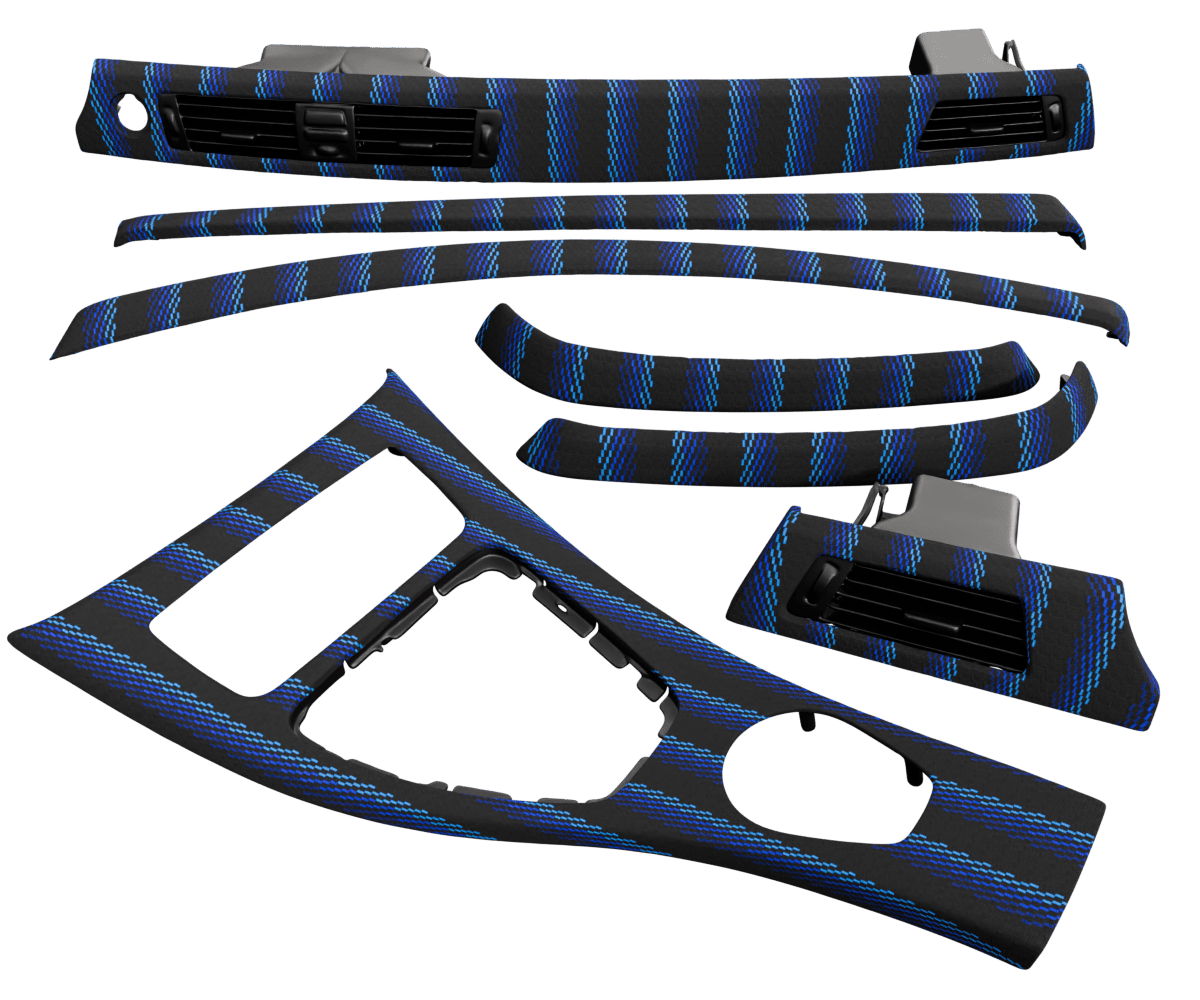

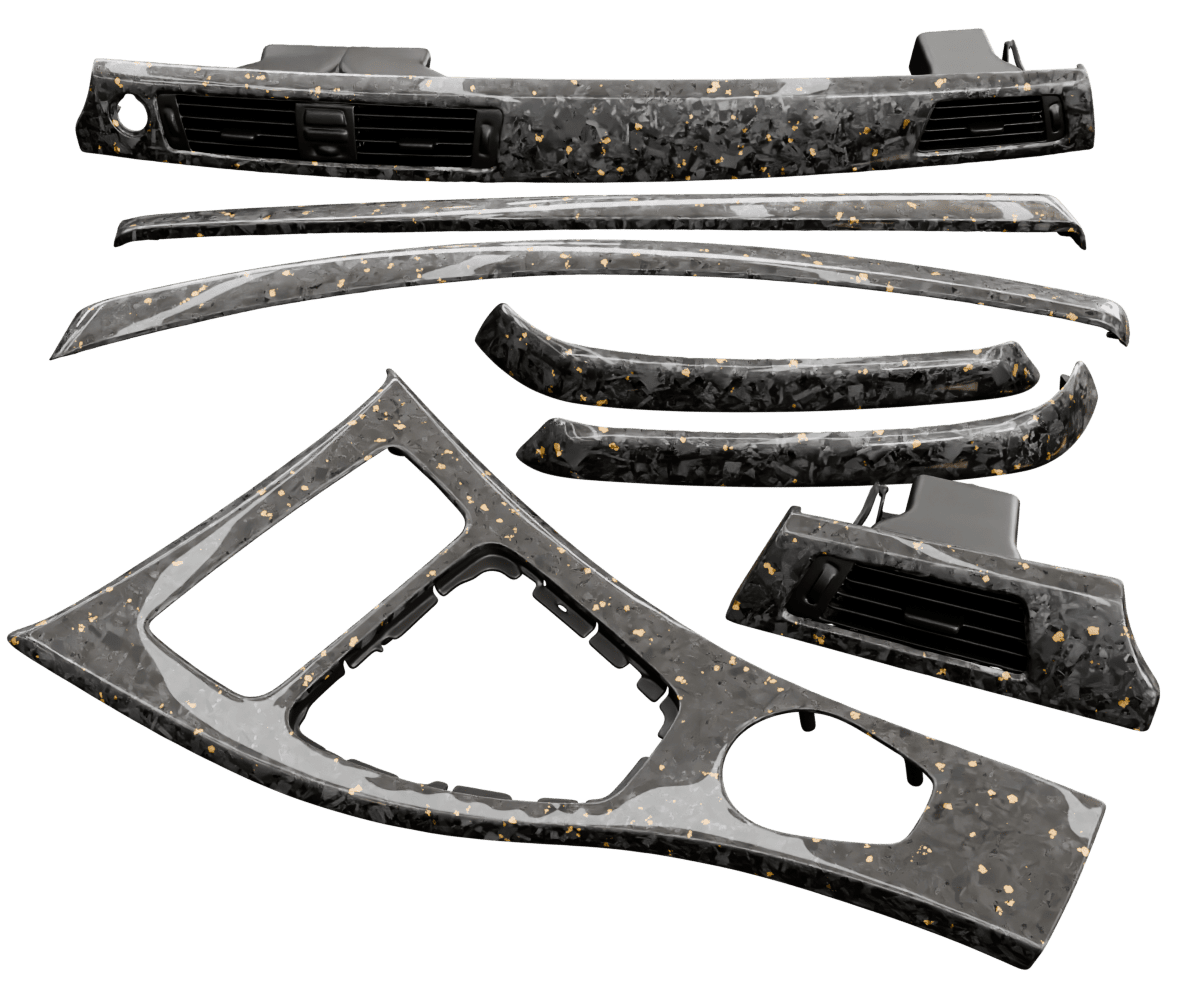

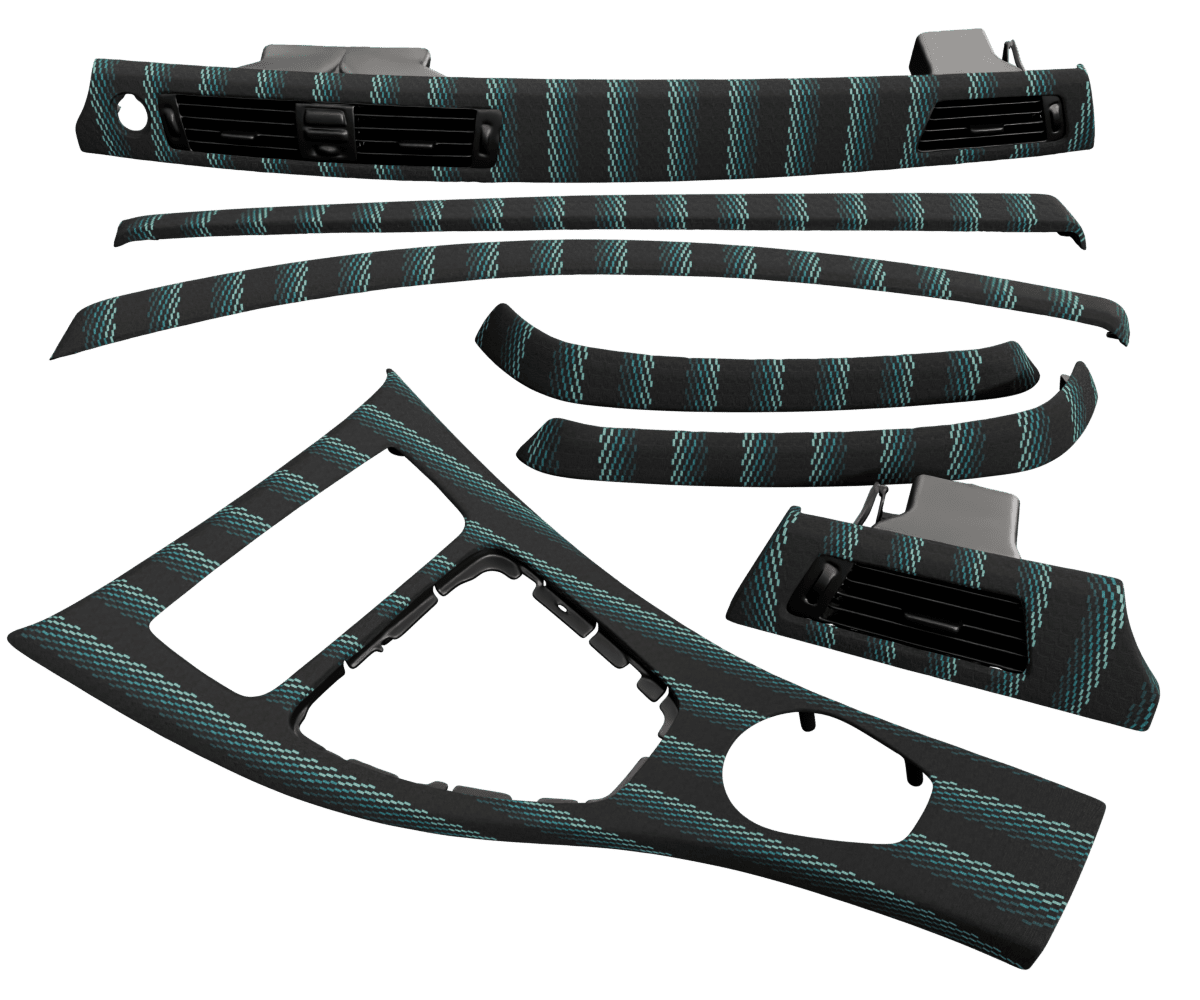

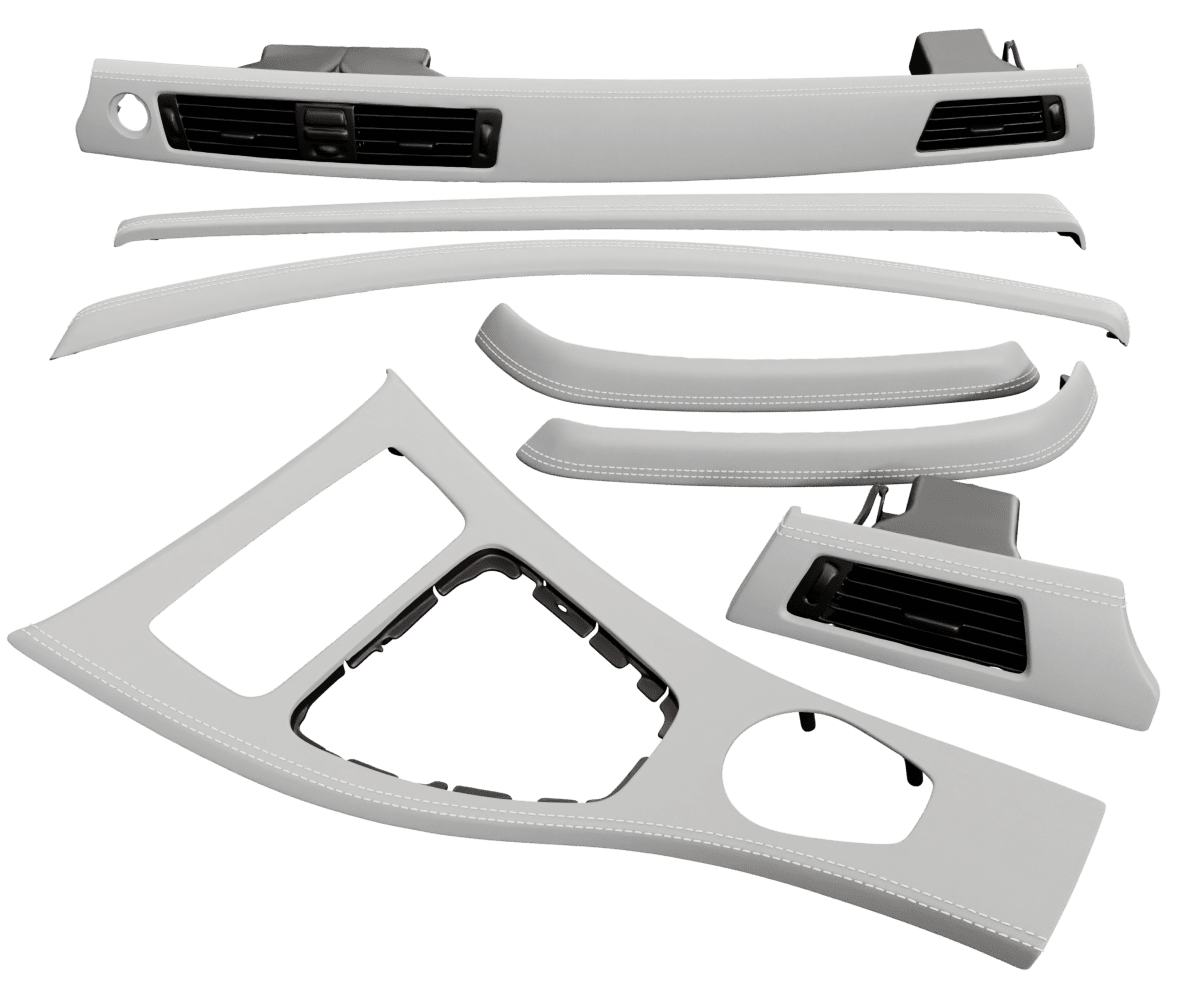

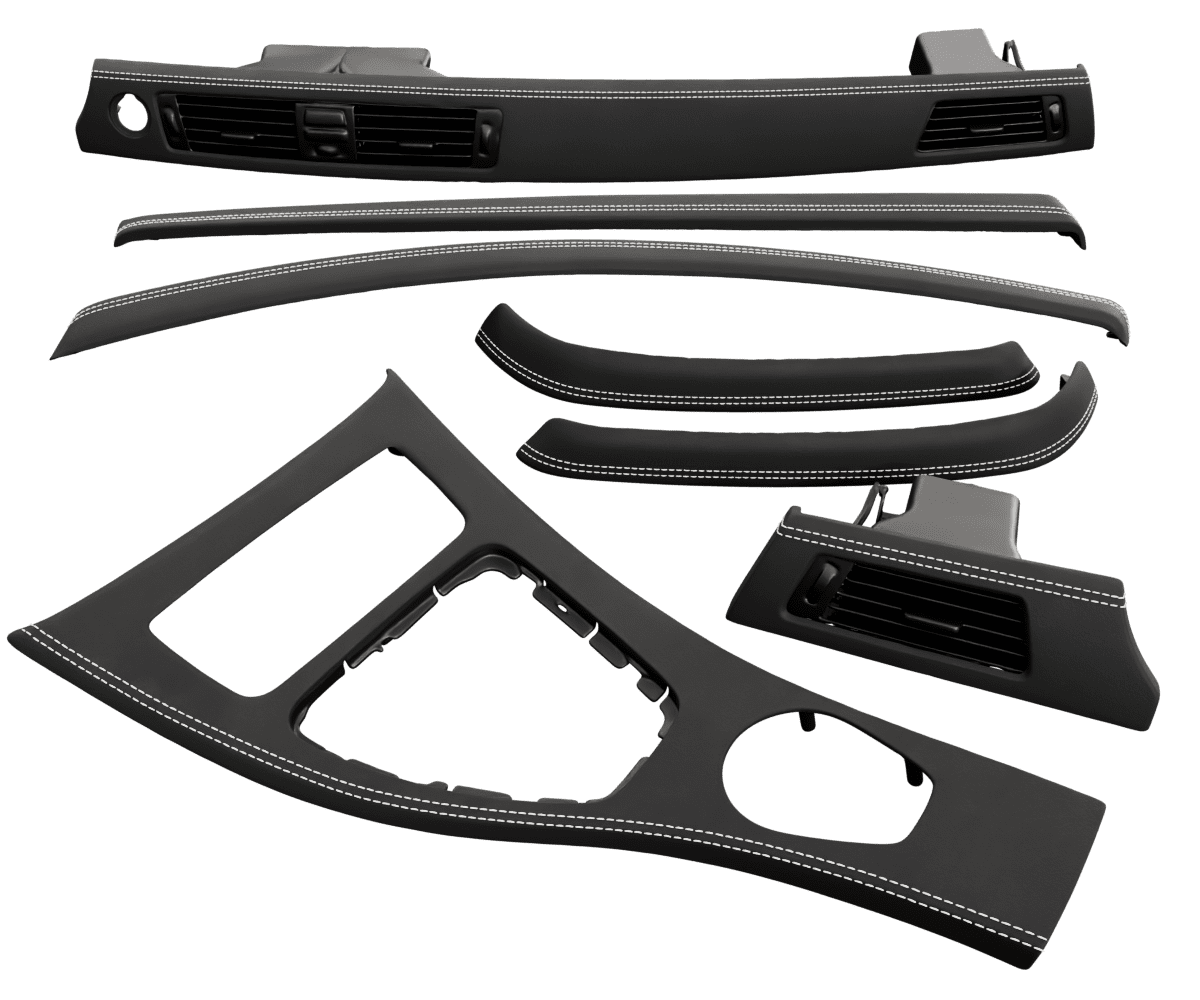

BMW 3-Series E90 Alcantara Wood Trim Set (Dash L/R, Door Trim Front L/R, Door Trim Rear L/R, Center Console)

OEM-direct replacement trim set for the BMW E90 sedan. Each piece is custom made-to-order in your choice of Alcantara, Forged Carbon Fiber, Carbon Fiber, or Nappa Leather—built on OEM fitment for a clean, rattle-free install.

Part Numbers

Dashboard – Left (wood): Nutwood (Burr Walnut) 51457132853 • Poplar woodgrain (pre-09/2008) 51456957499 (includes vent openings).
Dashboard – Right (wood): Nutwood (Burr Walnut) 51459171173 (replaces 51457132851/51456985540) • Poplar woodgrain (pre-09/2008) 51456957498.
Front Door Wood Trim: Walnut – Left 51417121471, Right 51417121472 • Poplar (pre-09/2008) – Left 51417138869, Right 51417138870.
Rear Door Wood Trim: Walnut – Left 51427121475, Right 51427121476 • Poplar (pre-09/2008) – Left 51427138871, Right 51427138872.
Center Console Wood Trim (iDrive/CIC): LCI walnut (CIC) 51169170899 • Dark Bamboo (LCI) 51169214775 • Earlier iDrive variant (Burr Walnut) 51167137484.
Complete OEM “decorative strip” sets (reference): Walnut sets 51167137484, 51167129547 • Poplar sets (pre-09/2008) 51167129553, 51167137478.

Primary catalog source: BMW dealer catalog breakout for “Fine Wood Trim” (E90 sedan) lists the individual dashboard, door, and set part numbers above with production split (pre-09/2008 vs. LCI) and wood species (Nutwood/Burr Walnut S4ABA, Poplar S4ACA). See category pages for the 2008 E90 328i Sedan: Fine Wood Trim.

Compatibility with other chassis'

E91 Touring (wagon): Many dash and console trims share the same part numbers as E90 (e.g., center console wood trim listed as “E90/E91” on OEM-based listings: 51169170899, 51167137484).
E92/E93 (coupe/convertible): Some center console wood trims interchange by iDrive generation (CIC vs CCC) and wood species (example Dark Bamboo 51169214775 noted for E90/E92). Always confirm by VIN and iDrive type; coupe/convertible dash strips differ due to vent/shape differences (fitment notes).
Production splits: Pre-LCI (to 09/2008) Poplar parts use different numbers than LCI Walnut parts; right-side dashboard Walnut 51459171173 supersedes earlier 51457132851/6985540 (catalog page).

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We remanufacture these trims on OEM cores for true plug-and-play fit. Choose Alcantara for a motorsport look, Nappa Leather for a luxe tactile finish, or Carbon (forged/2x2 twill) for a modern performance vibe. All pieces retain the factory clip geometry and clearances so install is as straightforward as swapping OEM parts.

Installation tools needed

Plastic trim lever set and panel wedge
T20 Torx driver (vent and console fasteners)
Phillips screwdriver (ashtray/console sub-assemblies as applicable)
Plastic clip pliers or needle-nose pliers (retainers)
Microfiber towels and masking tape (to protect surrounding surfaces)
Isopropyl alcohol and lint-free wipes (final clean before install)

OEM+ parts, Direct swap of OEM parts

Every Baesic Builds trim is a direct-swap on OEM cores—no cutting, drilling, or coding. Fitment matches the BMW ETK references above, so your E90 goes back together with factory alignment, clip engagement, and vent operation intact.
