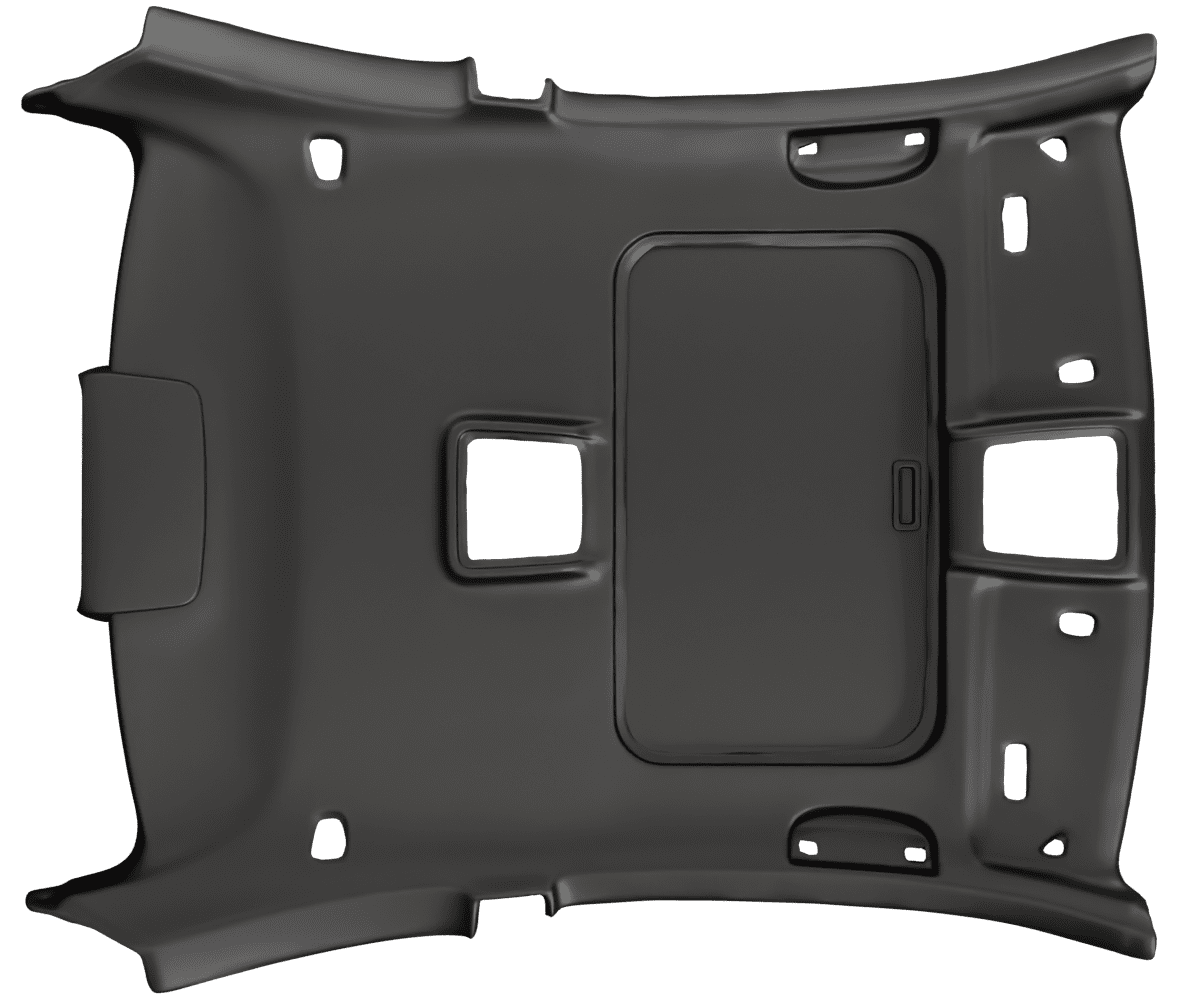

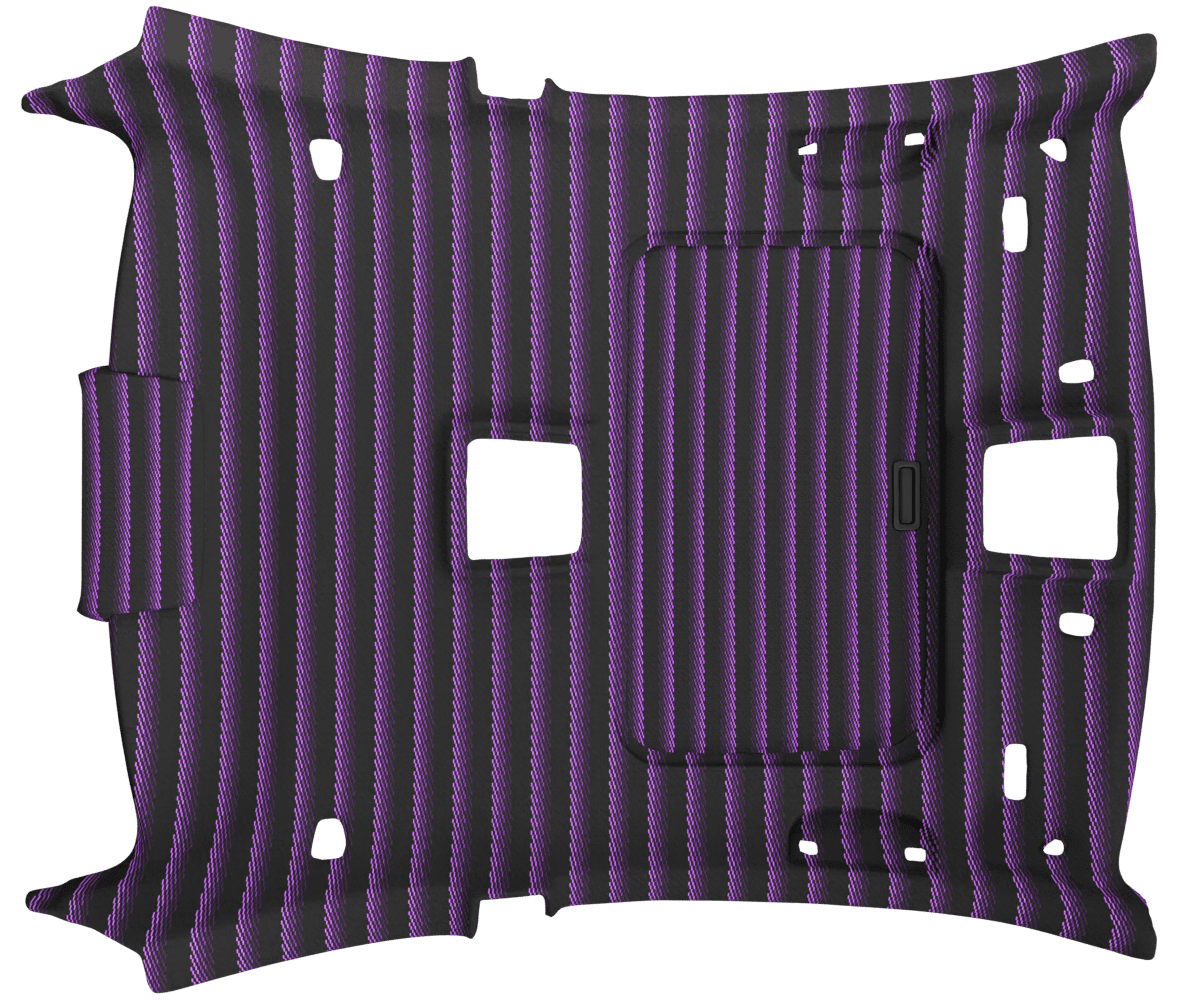

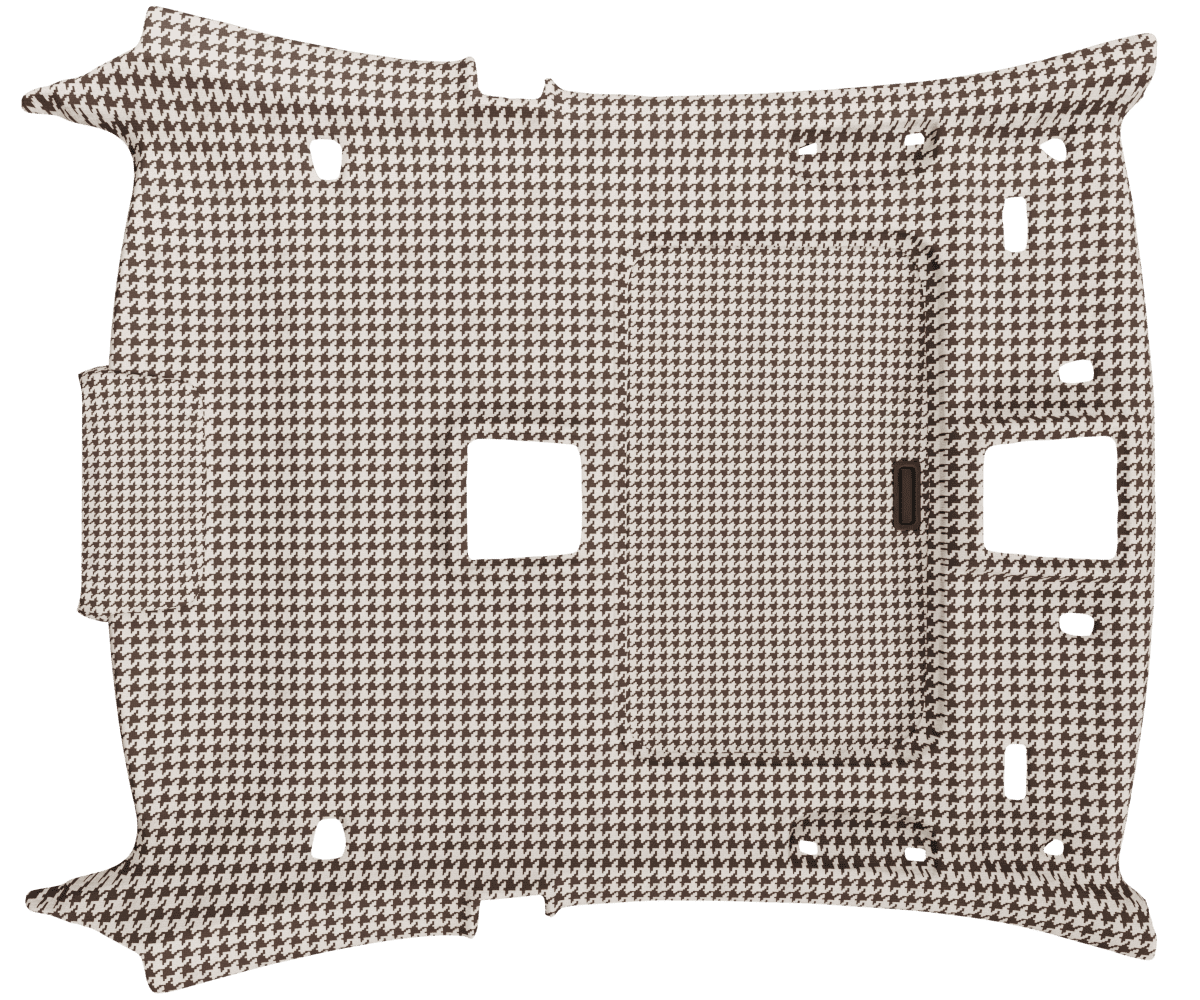

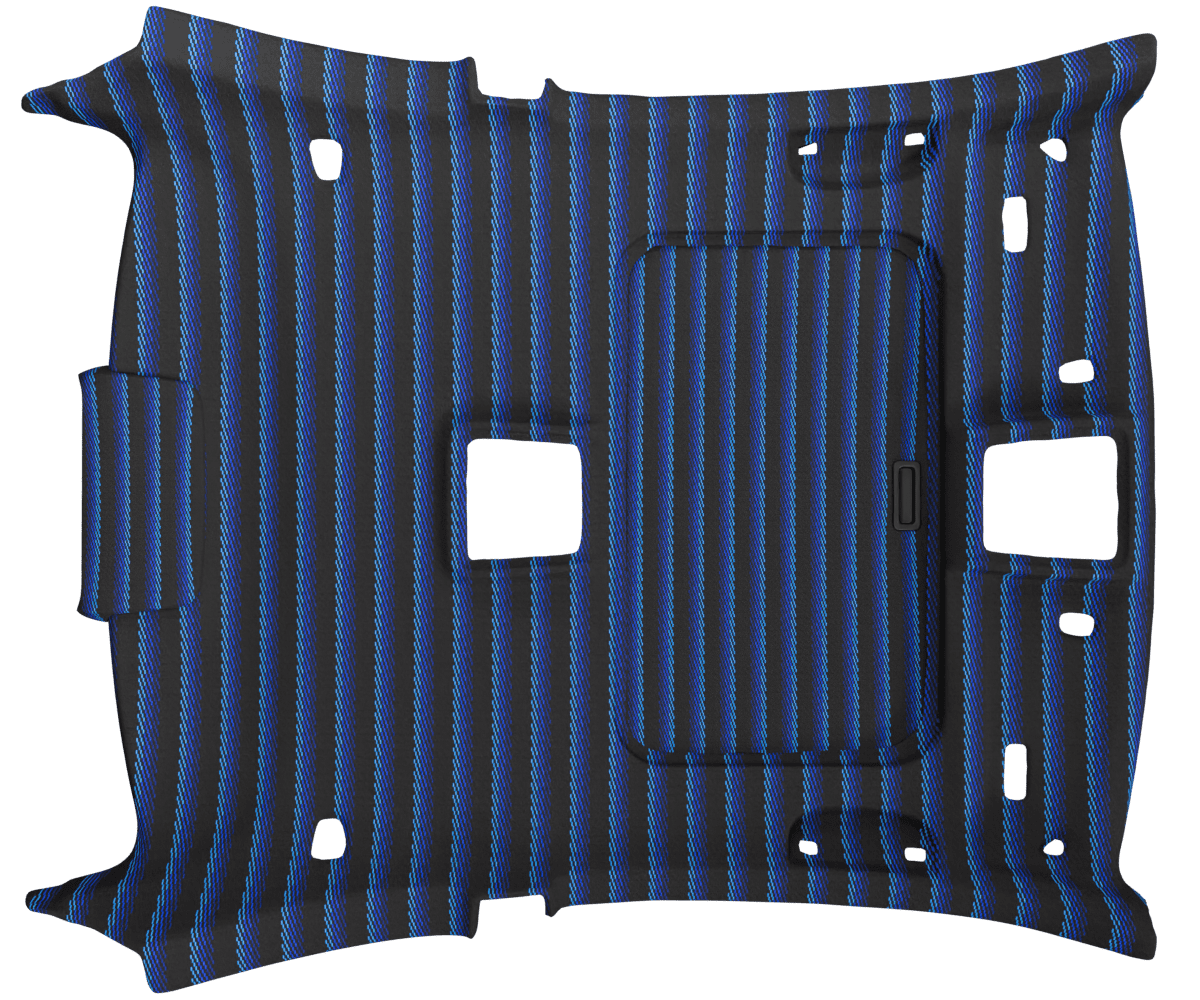

2006-2013 BMW 3-SERIES E92 HEADLINER
BMW E92 Alcantara Sun Visors and Pillar Covers (A/B/C)
Upgrade your BMW E92 3-Series interior with OEM-core sun visors and A/B/C pillar covers, custom re-trimmed in Alcantara, Forged Carbon Fiber, Carbon Fiber, or Nappa Leather. All pieces start from genuine BMW cores so fitment matches factory tolerances and clip locations. That means you get a modern, motorsport-inspired interior while keeping OEM safety, airbag clearances, and sun visor functionality intact.
Part Numbers
Below are the key BMW OEM reference part numbers used as donor cores for E92 coupe sun visors and pillar covers. Numbers are shown without spaces (e.g., 51167960063 = 51 16 7 960 063).
Sun visors (front, left/right)
| Location | Description | BMW Part No. | Notes / References |
|---|---|---|---|
| Driver side visor (LHD) | Sun visor, cloth, Anthracite, with mirror | 51167960063 | Listed as “Sun visor, cloth left, Anthrazite” for E92/M3 in BMW parts catalogs and dealers. |
| Passenger side visor (LHD) | Sun visor, cloth, Anthracite, with mirror | 51167960064 | Listed as “European Sun Visor – Anthracite, right” for E92 coupe. |
| Alternative M3 visor (various trims) | Sun visor assembly (M3, 2008–2013) | 51167960067 | Referenced as “Sun-Visor 51-16-7-960-067” for E92 M3; functionally compatible visor shell. |
| Earlier style visors (E9X) | Sun visor pair, black/anthracite (E90/E91/E92) | 51166981673 (L), 51167252054 (R) | Common earlier E9X visor pair used as donor cores on 06–13 3-Series, including E92. |
All Baesic Builds E92 visors are OEM cores stripped and re-wrapped, so regardless of original trim code, your finished set is a direct bolt-in replacement with upgraded materials.
A-pillar covers (left/right)
| Location | Color / Trim | BMW Part No. | Notes |
|---|---|---|---|
| A-pillar left | Anthracite headliner | 51437960057 | “Left column A cover, Anthrazit” for E92 335xi and other E92 coupes. |
| A-pillar right | Anthracite headliner | 51437960058 | “Right column A cover, Anthrazit” for E92 coupe. |
| A-pillar left | Grey (Grau) | 51436954665 | Left A-pillar cover for standard grey/cloth interiors. |
| A-pillar right | Grey (Grau) | 51436954666 | Right A-pillar cover for grey interiors. |
| A-pillar left | Cream Beige | 51436954667 | “E92 Left Column A Cover, CREAMBEIGE (inc. 335i, 325xi, 330d)” |
| A-pillar right | Cream Beige | 51436954668 | Right A-pillar cover for cream-beige interiors. |
B-pillar upper covers (left/right)
| Location | Color / Trim | BMW Part No. | Notes |
|---|---|---|---|
| B-pillar upper left | Anthracite | 51437960059 | Upper B-pillar cover, left, anthracite headlining. |
| B-pillar upper right | Anthracite | 51437960060 | Upper B-pillar cover, right, anthracite; listed individually as “B pillar cover – right – E92.” |
| B-pillar upper left | Grey (Grau) | 51436954655 | Upper left B-pillar cover for grey interiors. |
| B-pillar upper right | Grey (Grau) | 51436954656 | Upper right B-pillar cover; frequently sold as E92 B-pillar trim panel. |
| B-pillar upper left | Cream Beige | 51436954657 | Upper left B-pillar cover, cream-beige interior. |
| B-pillar upper right | Cream Beige | 51436954658 | Upper right B-pillar cover, cream-beige interior. |
C-pillar covers (left/right)
| Location | Color / Trim | BMW Part No. | Notes |
|---|---|---|---|
| C-pillar left | Anthracite | 51437960061 | “Cover column C left, Anthrazit” for E92 coupe rear interior trim. |
| C-pillar right | Anthracite | 51437960062 | “Cover column C right, Anthrazit,” matching right-side C-pillar. |
| C-pillar left | Grey (Grau) | 51436954647 | C-pillar left, grey interior. |
| C-pillar right | Grey (Grau) | 51436954648 | C-pillar right, grey interior. |
| C-pillar left | Cream Beige | 51436954649 | C-pillar left, cream-beige interior. |
| C-pillar right | Cream Beige | 51436954650 | C-pillar right, cream-beige interior. |
Representative catalog references for these part numbers:
- BMW E92 Trim panel A/B/C Column – PartsOuq catalog
- 51437960057 Left A-pillar cover – Turner Motorsport
- 51167960063 Left sun visor, Anthracite – ECS Tuning
- 51167960064 Right sun visor, Anthracite – ECS Tuning
- 51167960063 Sun visor, cloth left – BMW dealer catalog
- E90/E92 M3 Anthracite headliner parts list (visors, pillars)
Compatibility with other chassis'
The part numbers above are catalogued for the E92 3-Series coupe (including 328i, 335i, and E92 M3), but many of them are shared with other E9X chassis and trims:
- Sun visors 51167960063 / 51167960064 – Used on E92 coupe and E92 M3 with anthracite headliner; also appear in European catalogs as “European Sun Visor – Anthracite” for E92.
- A/B/C pillar covers (anthracite / grey / cream-beige) – Many of the A/B/C column trim part numbers are listed for the full E90/E91/E92/E93 3-Series family (sedan, touring, coupe, cabrio), especially in cream-beige and grey, where the same part numbers are shared across body styles.
- Anthracite “M-style” headliner sets – Enthusiast headliner kits for E90/E92 M Sport/M3 reuse the same anthracite A/B/C pillar part numbers (e.g., 51437960057/058, 51437960059/060, 51437960061/062) across sedan and coupe variants.
- C-pillar trims 51437960061 / 51437960062 – Sold specifically as “E92 3-Series Coupe C pillar trim” but frequently cross-listed with other E9X in recycler catalogs.
In practice, if your car is an E92 coupe or E92 M3 (2007–2013), these Baesic Builds parts will bolt up as a direct OEM replacement. Many donor cores can also be sourced from compatible E90/E91/E93 models sharing the part numbers above, then re-trimmed for your specific chassis.
Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather
Each set from BaesicBuilds.com starts life as genuine BMW components. We carefully strip, repair and re-finish your E92 sun visors and pillar trims using high-end materials:
- Alcantara headliner look – Match or upgrade to a full anthracite/Alcantara headliner vibe with pillars and visors wrapped in OEM-grade Alcantara for a soft, non-glare finish that feels factory+.
- Forged carbon fiber overlays – For A/B/C pillars or accent pieces, we can skin OEM cores in forged carbon, then finish in gloss or satin clear for a modern motorsport look.
- Traditional carbon fiber – 2x2 twill or plain weave on select trim inserts for a cohesive interior theme with your dash and center console pieces.
- Nappa leather – Smooth Nappa leather wraps for a more luxury-oriented cabin, with tight hand-stitched edges and optional contrast stitching.
Because we build on OEM BMW cores, every mounting tab, clip, airbag cover and sun visor hinge is in the correct location. These are OEM+ direct replacement parts: no drilling, trimming or universal brackets required. You simply remove your stock pieces and install the upgraded set.
Installation tools needed
Basic hand tools are all that is required to install E92 sun visors and A/B/C pillar covers. Exact tool list can vary slightly by model year and options, but the following will cover a typical install:
- Nylon interior trim removal tools (to pry down visors and pillar covers without marring plastic)
- Torx drivers or bits (commonly T20 and T25) for visor screws and some pillar fasteners
- Small flathead screwdriver or pick tool (for releasing hidden clips and airbag cover caps)
- Ratchet and socket set (often 8 mm or 10 mm for certain brackets, depending on model)
- Panel clip removal pliers (helpful for stubborn push-clips behind pillars)
- Masking tape and soft microfiber towels (to protect headliner and glass while working)
- Step stool or small ladder if the car is lowered and you need better access to the roofline
- Safety glasses and gloves (recommended when working around side-curtain airbags and brittle plastic clips)
No wiring modifications are required when reusing OEM visor electrical connectors (for vanity lights), and all pillar covers clip back into OEM locations. Most installs can be done in a home garage by a careful DIYer.
OEM+ parts, Direct swap of OEM parts
Baesic Builds focuses on OEM+ execution: everything is based on genuine BMW cores using the part numbers listed above, then custom-wrapped or skinned to match your vision. The result is a set of sun visors and A/B/C pillars for your BMW E92 that:
- Retains BMW engineering for fitment, airbag clearance, and safety-critical dimensions.
- Installs as a direct swap for your original visors and pillar covers, with OEM mounting points and hardware.
- Provides a custom, made-to-order finish in Alcantara, forged carbon, traditional carbon, or Nappa leather tailored to your interior build.
Whether you are chasing an OEM M3 anthracite look, a full Alcantara “CSL” style cabin, or a forged-carbon show car interior, these E92 sun visors and pillar covers give you a bolt-on upgrade path without sacrificing OEM quality.
