2006-2013 BMW 3-SERIES E92 WOOD TRIM NON-M CCC

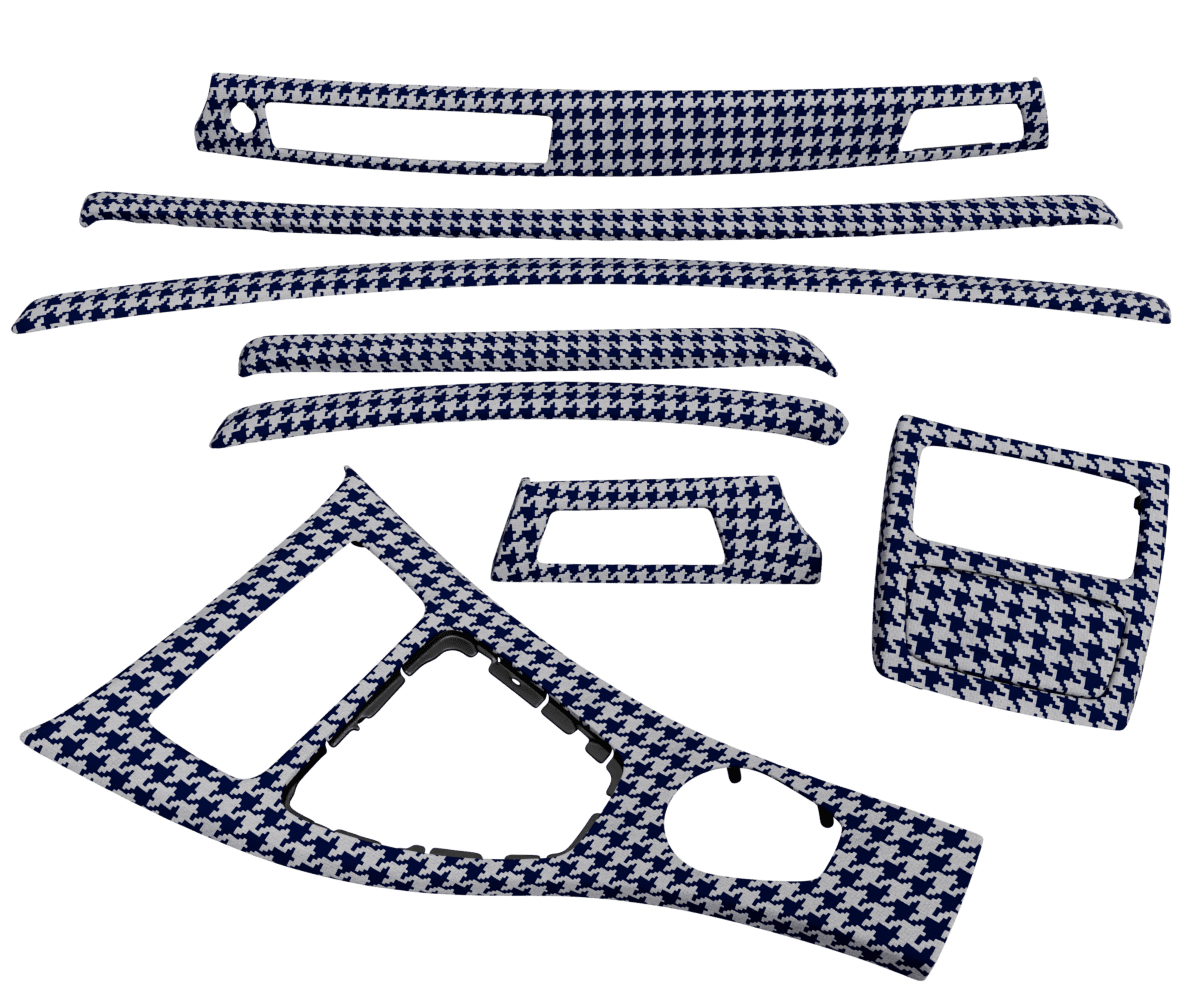

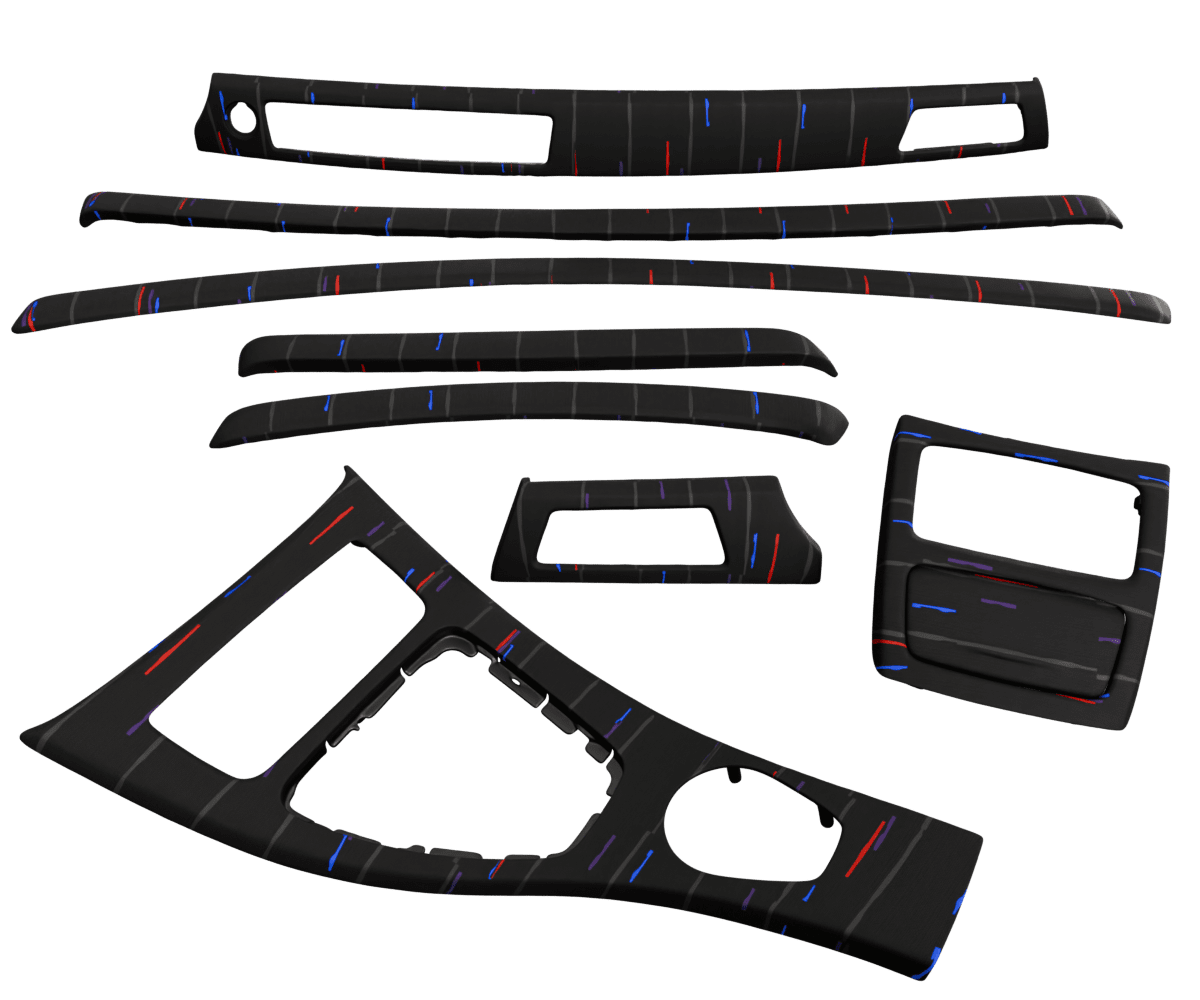

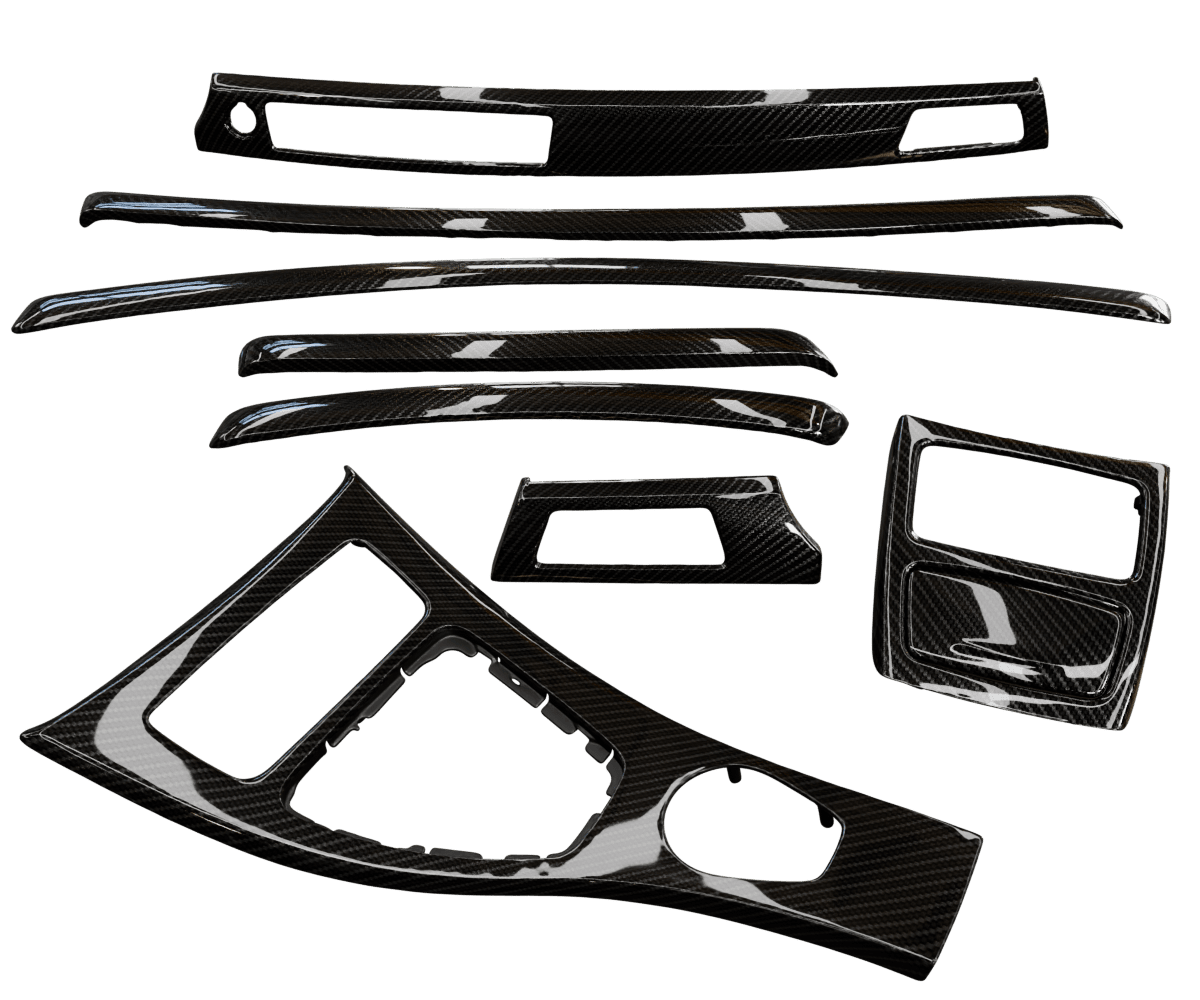

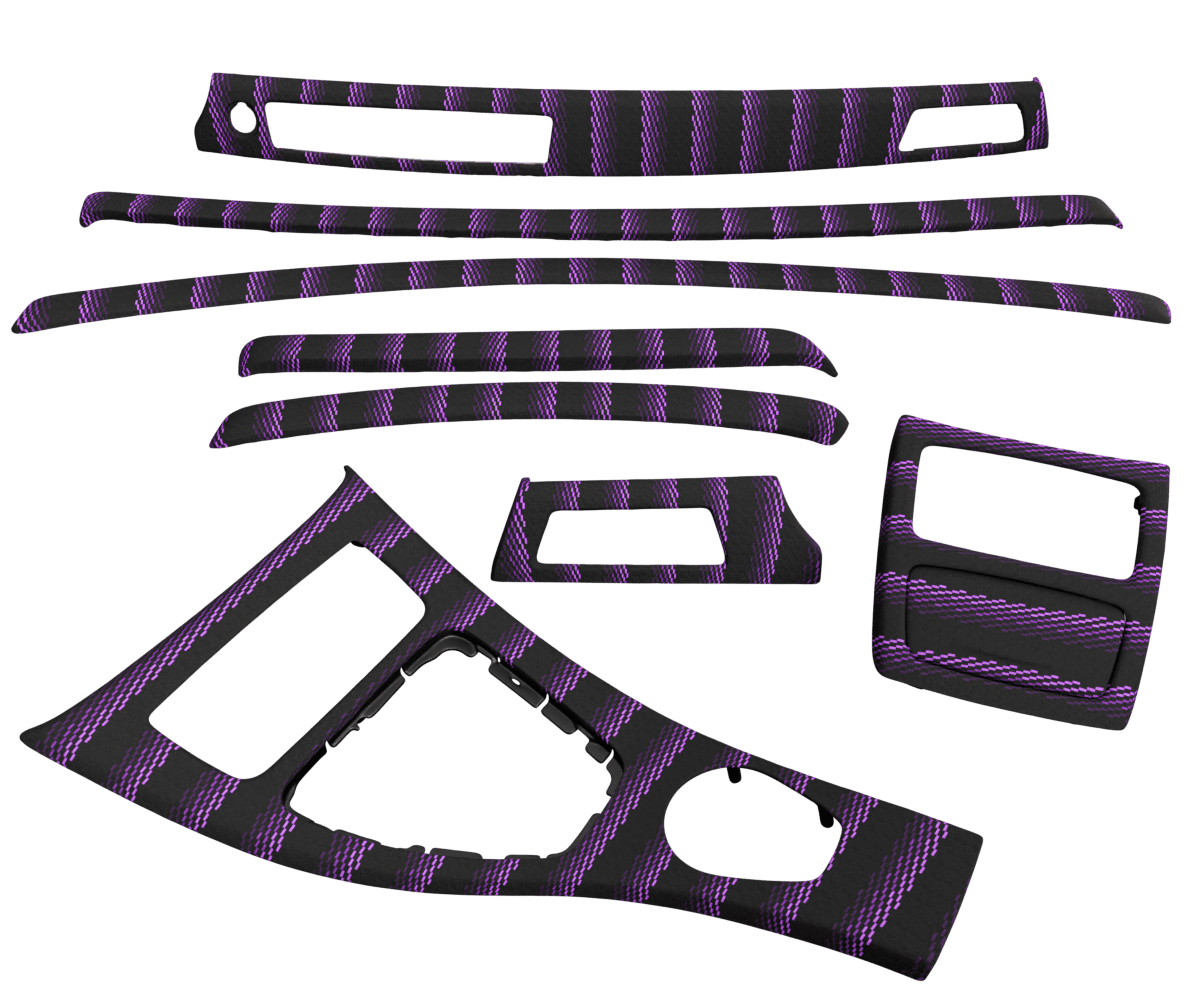

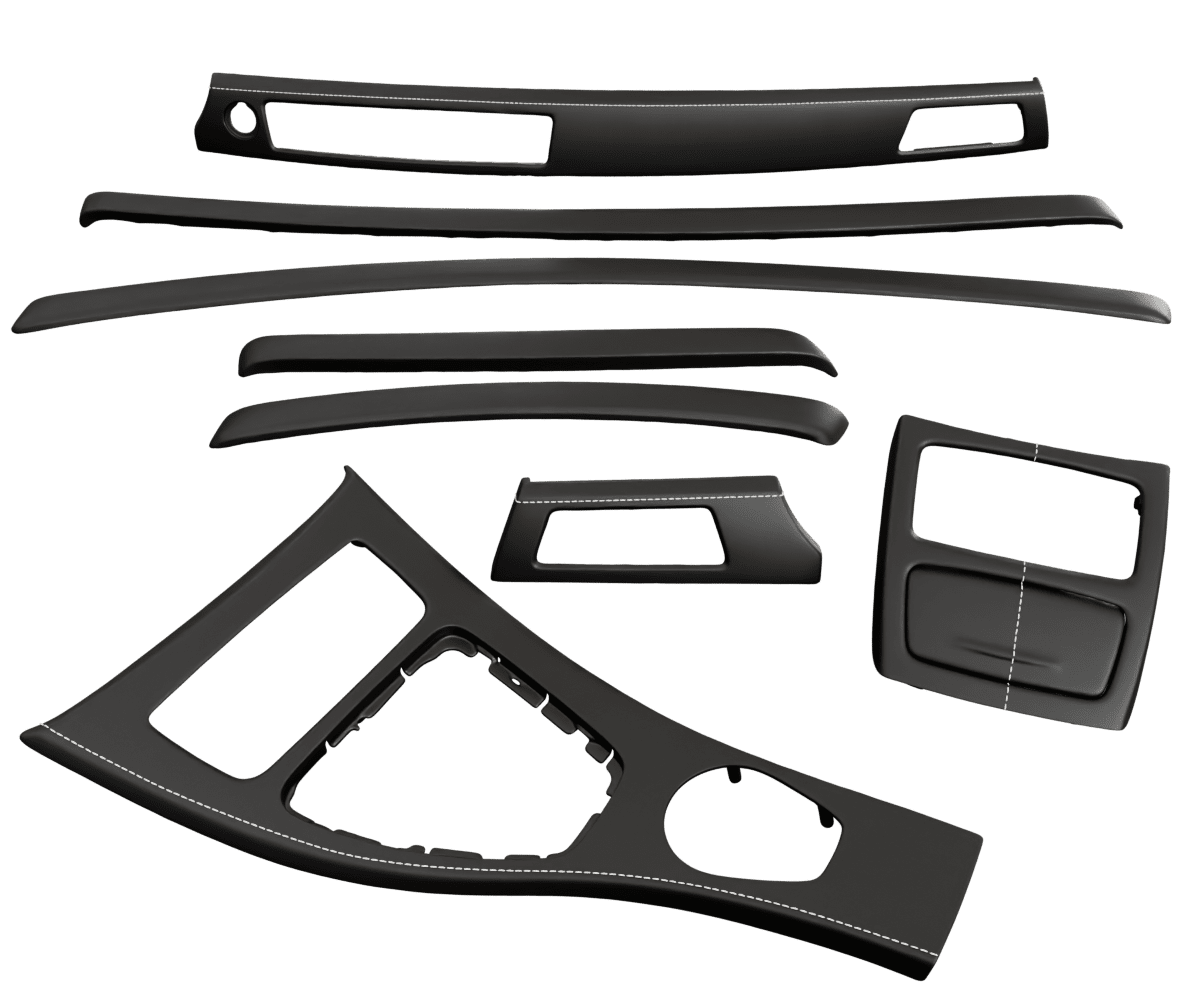

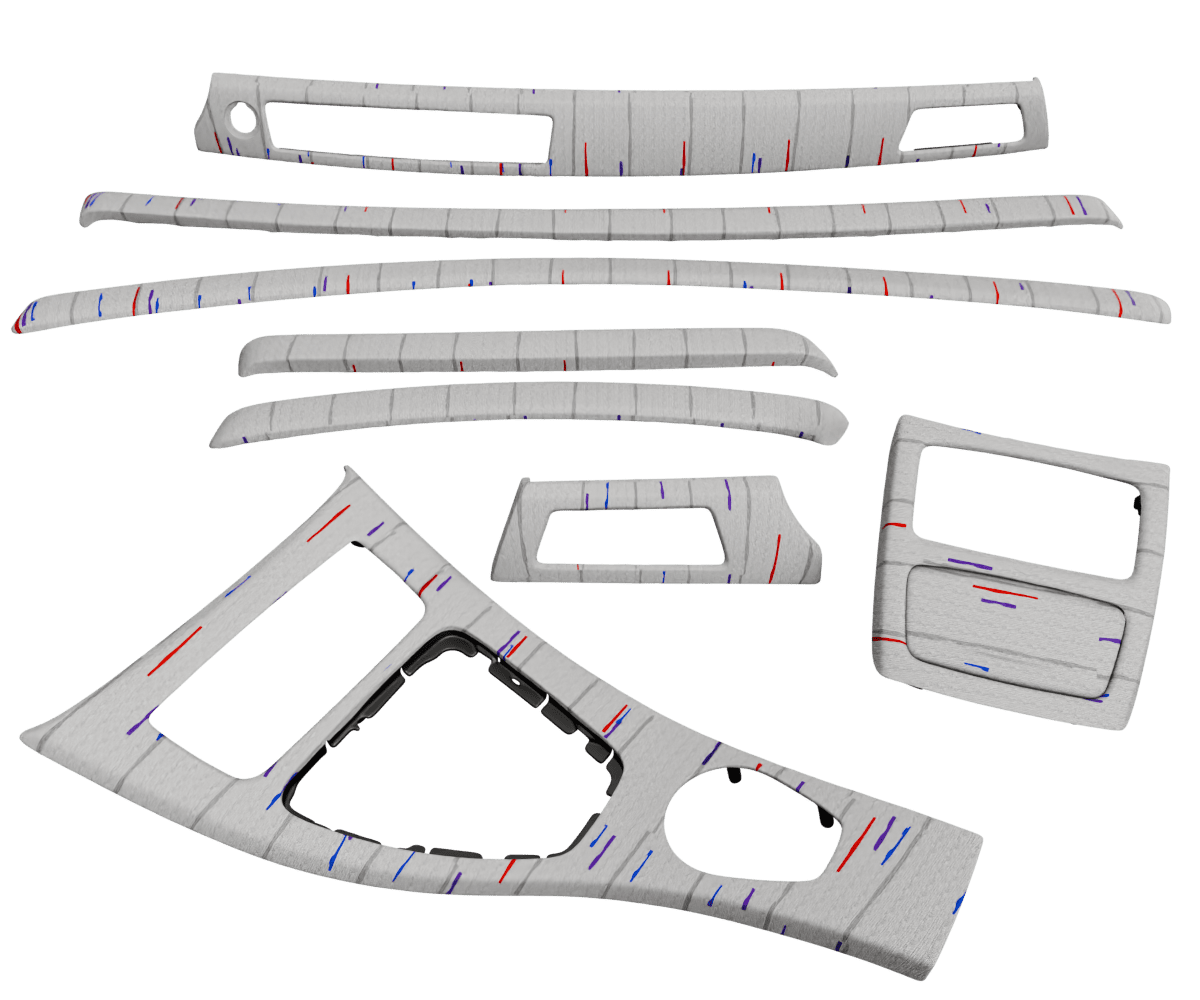

BMW 3-Series E92 Alcantara Wood Trim (Non-M, CCC)

Refresh your 2006–2013 BMW 3-Series Coupe (E92) interior with a premium trim set that’s custom-made to order and designed as a direct OEM replacement. This listing targets non-M E92 models equipped with the early iDrive controller (CCC). Every piece is matched to OEM geometry for a clean, factory-fit install while giving you the freedom to finish in Alcantara, Forged Carbon Fiber, traditional Carbon Fiber, or Nappa Leather over the original wood locations.

Part Numbers

• Front Left Door Decorative Strip (Walnut/Burr) — 51416958235. Source Alt
• Front Right Door Decorative Strip (Walnut/Burr) — 51416958236. Source
• Rear Left Side Panel Decorative Strip (Walnut/Burr) — 51436958247. Source
• Rear Right Side Panel Decorative Strip (Walnut/Burr) — 51436958248. Source
• Dashboard Decorative Strip, Left (Walnut/Burr) — 51456985538. Source
• Dashboard Decorative Strip, Right (Walnut/Burr) — 51456985540. Source (some vehicles list 51457132851 for the right dashboard trim depending on build date) Ref
• Center Console Cover, Front — CCC iDrive (Wood/Walnut) — 51166985616 (trim cover, walnut, front). Ref
• Center Console Decor Cover (Wood, storage area) — 51166951587. Ref
• Center Console Cover, Front (CCC iDrive—M3 reference) — 51167898850. Source Alt (shape reference; verify non-M compatibility by VIN)
• Complete Wood Trim Sets (Nutwood/Nussbaumwurzel) — 51169170873, 51169170899, 51169170900 (different kit contents/fitments across E9x variants). Source Alt Alt

Compatibility with other chassis'

E92 vs E93: Door and rear side panel decorative strips are shared between E92 (Coupe) and E93 (Convertible) in the same finish; the convertible’s center console piece can differ due to the roof switch aperture. Reference

Door trim cross-fitment: 51416958235 (left door) is documented for E92/E92N/E93/E93N. Source

Dashboard/console notes: Right-hand dashboard trim appears as 51456985540 on multiple catalogs; some listings show 51457132851 as a production-date variant. Always confirm by VIN/build date and iDrive generation (CCC vs CIC). Source Ref

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We build these trim pieces to order using your chosen finish: Alcantara (OEM-plus motorsport feel), Forged Carbon Fiber (bold marbling), 2×2 twill Carbon Fiber (classic weave), or Nappa Leather (smooth, upscale look). All options are laminated or wrapped over OEM-spec cores for a precise fit and clean clip-on installation. This product is a direct replacement for the original wood trim and is custom made at order time.

Installation tools needed

• Plastic trim removal tools (to protect soft surfaces)
• T15 Torx driver (console fasteners; varies by model year)
• Small flat plastic pick for clip release
• Microfiber towels and isopropyl alcohol for surface prep
• Optional: low-tack masking tape to mark alignment

OEM+ parts, Direct swap of OEM parts

Each piece mirrors OEM geometry and clip locations for a straightforward swap with factory tolerances. Reuse your original fasteners/clips where applicable; replace broken retainers as needed (common BMW retainer references: 51458266813, 51457152442, 07149158194). Ref

Fitment check: Because BMW used multiple trim supersessions across the E9x range and changed console geometry between CCC and CIC, please confirm by VIN before ordering. If you’re unsure, we’ll cross-check your last 7 VIN digits and build date to lock the correct set.
