2007-2013 BMW 3-SERIES E90 HEADLINER

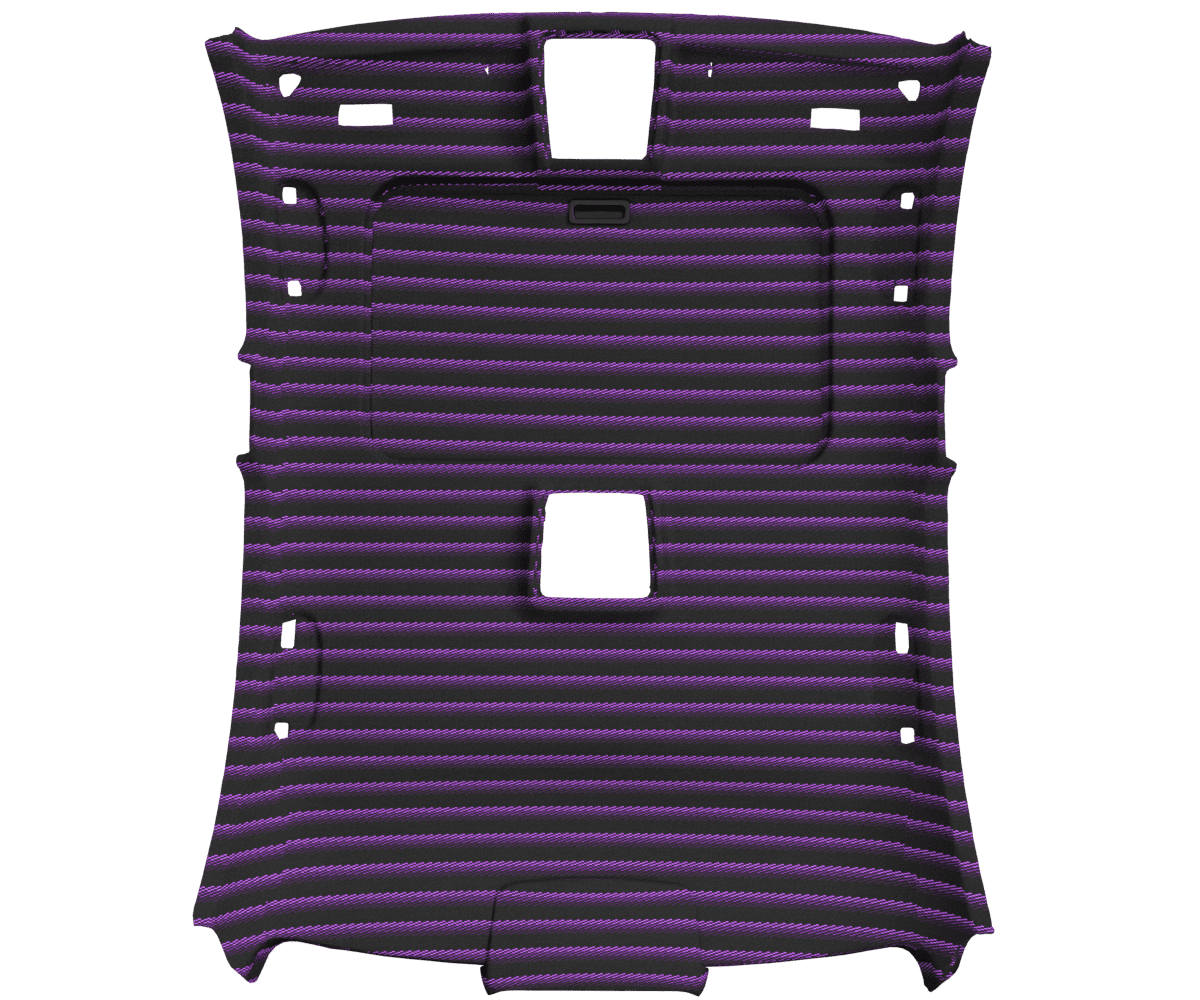

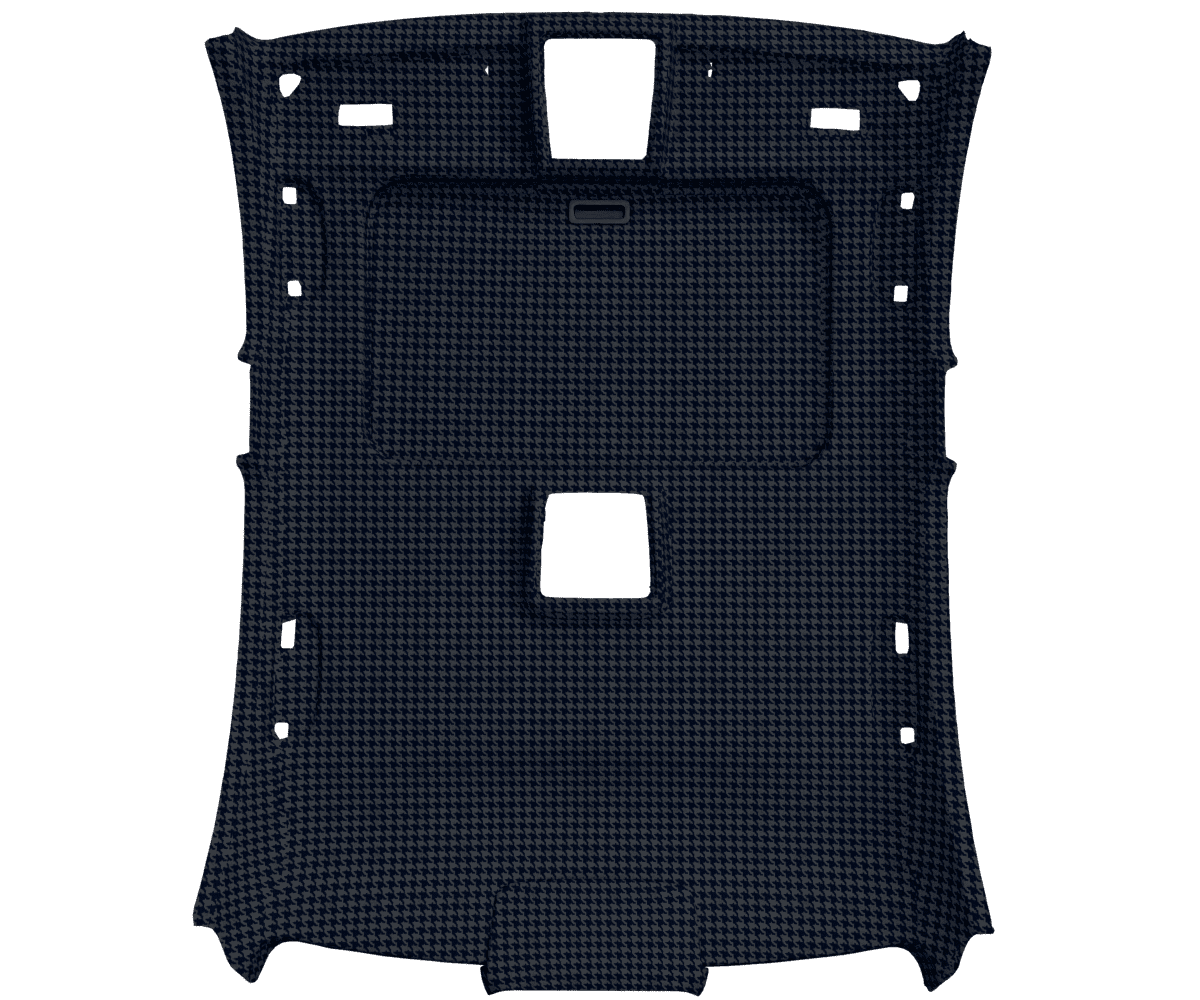

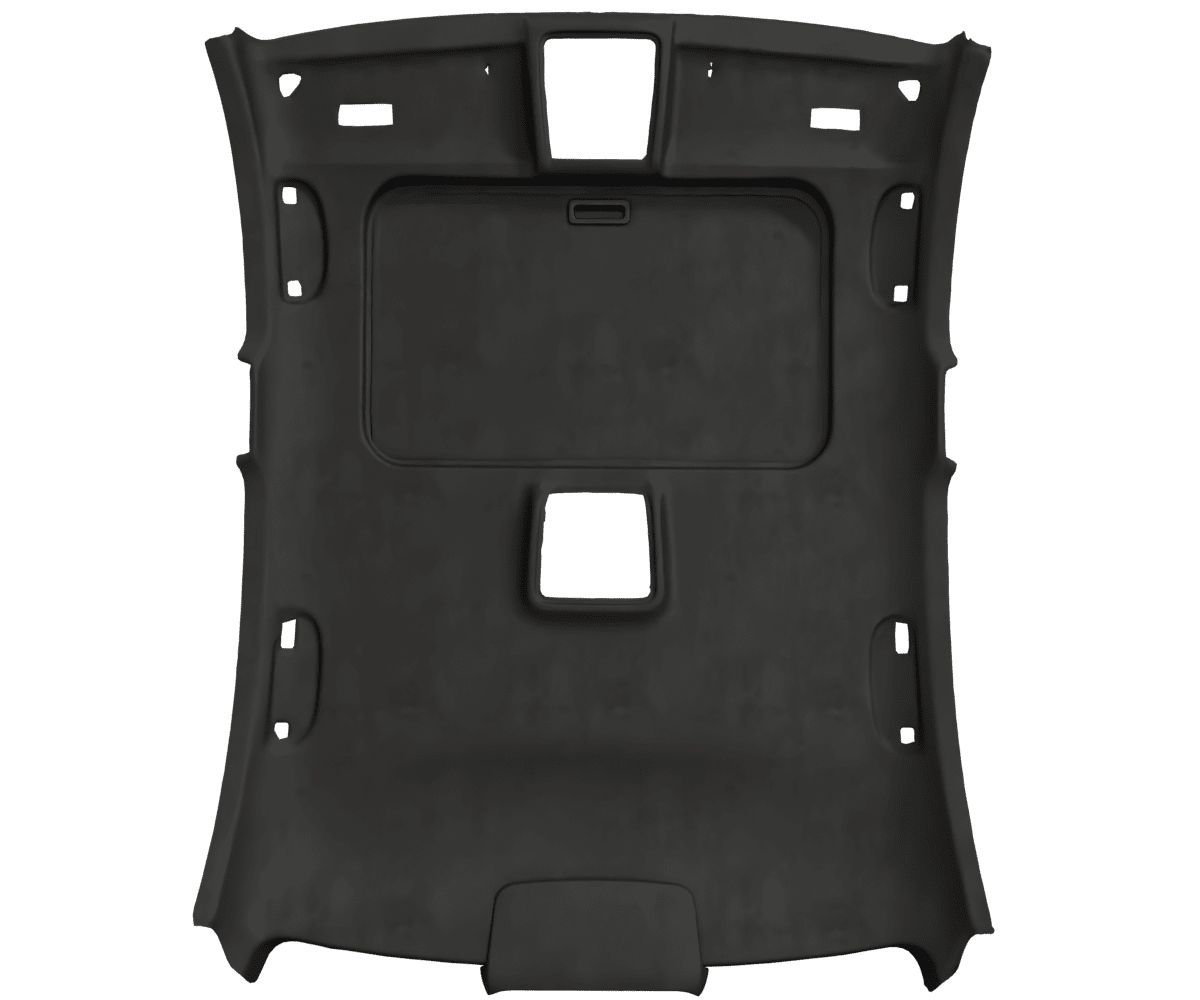

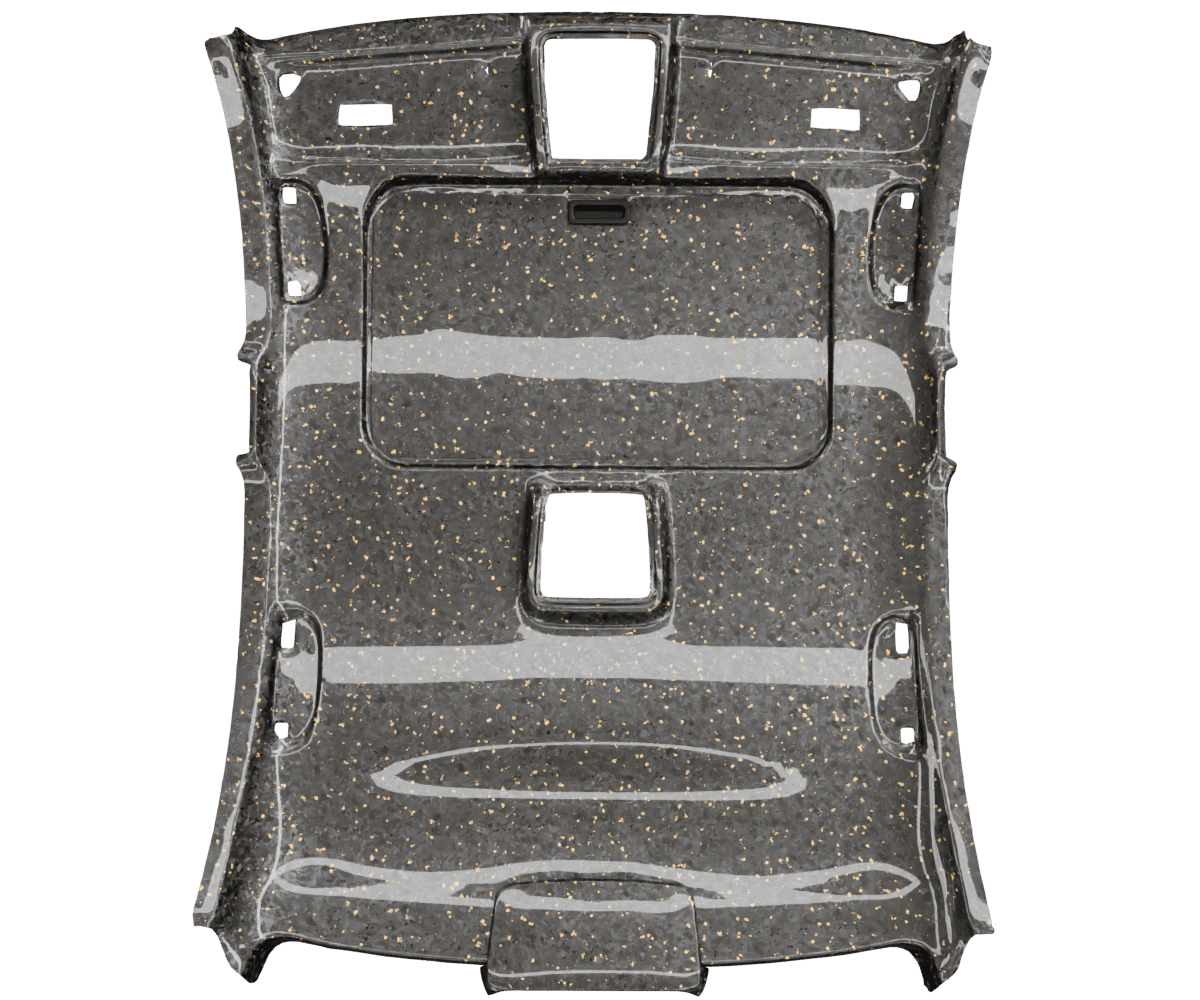

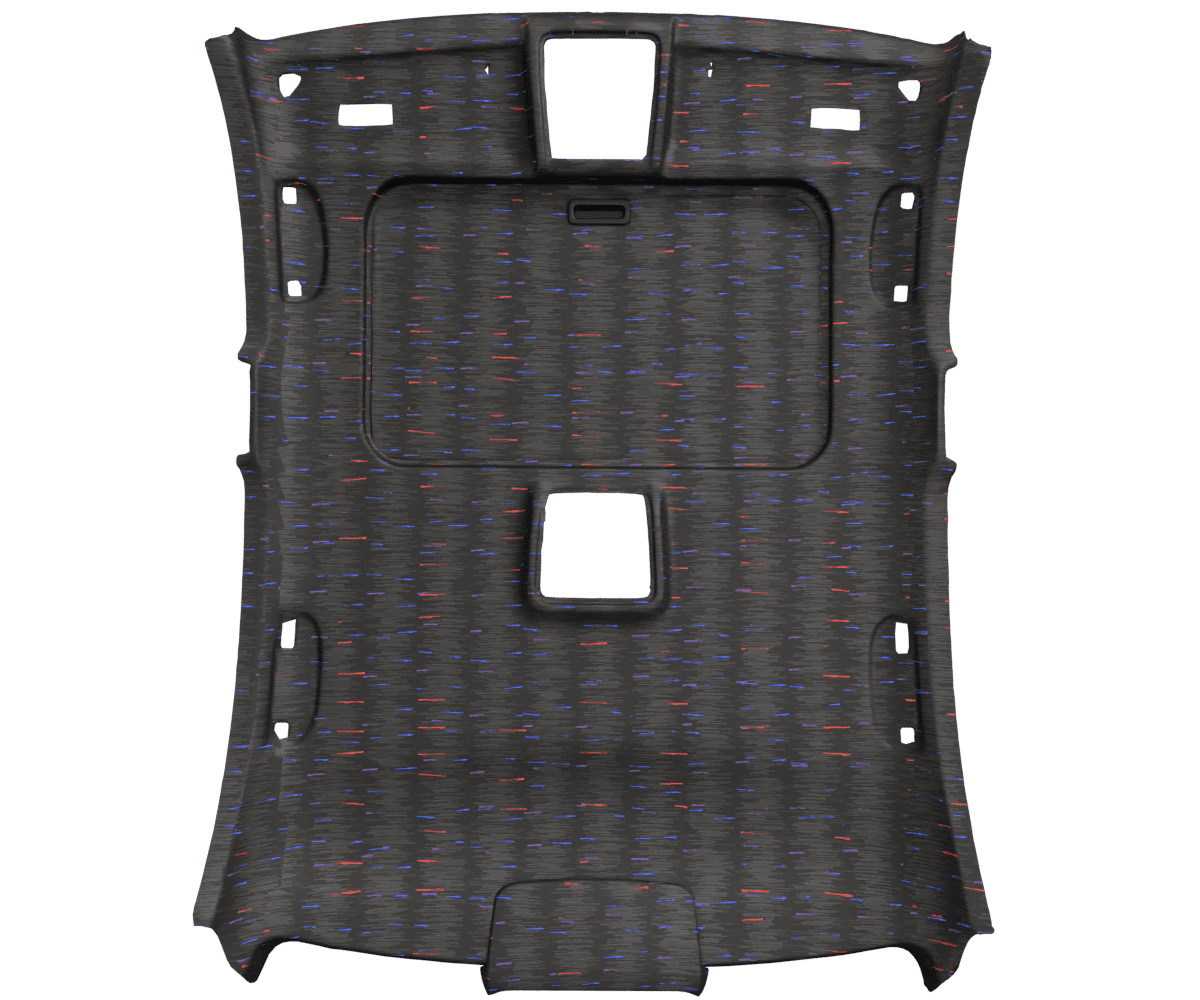

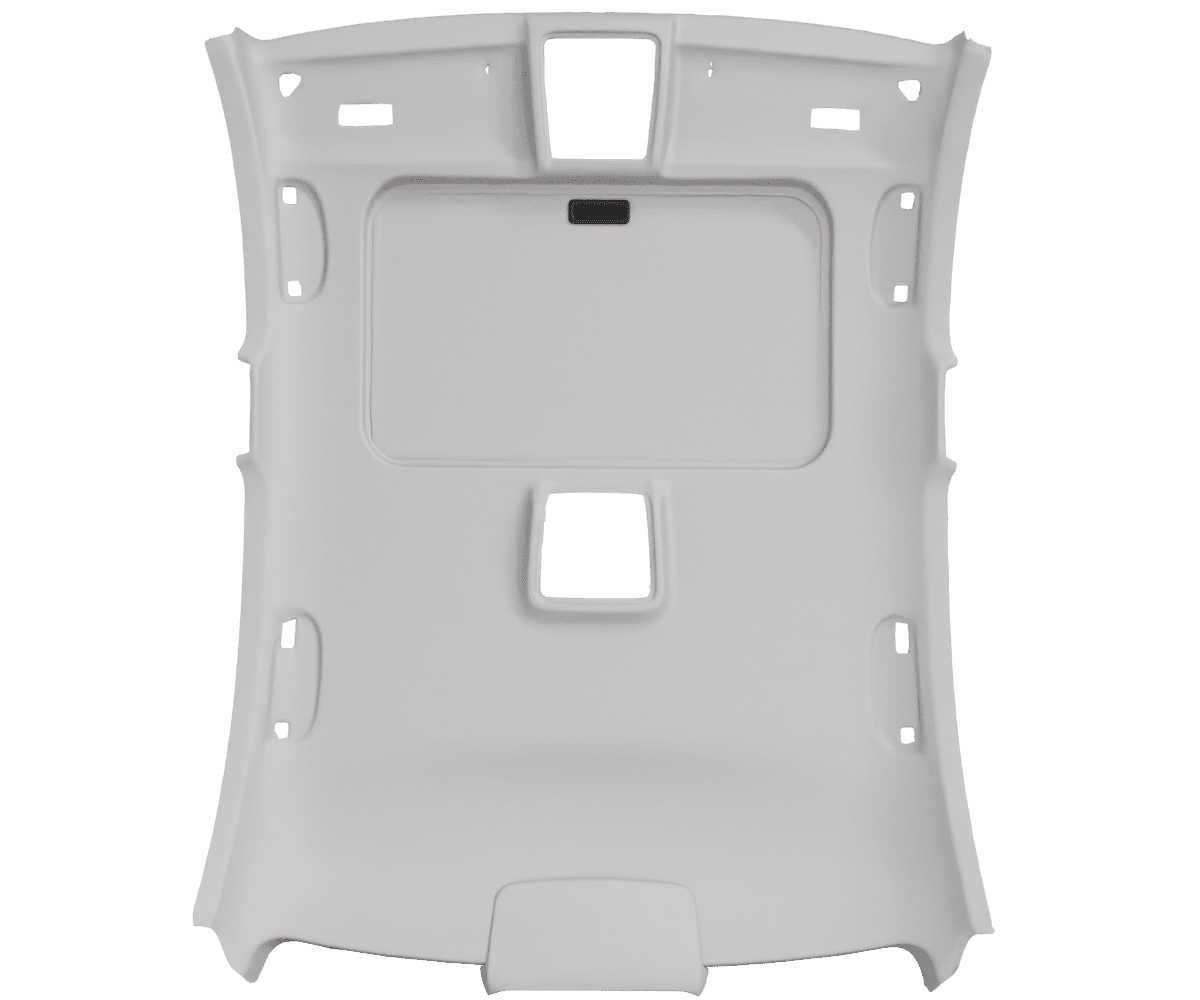

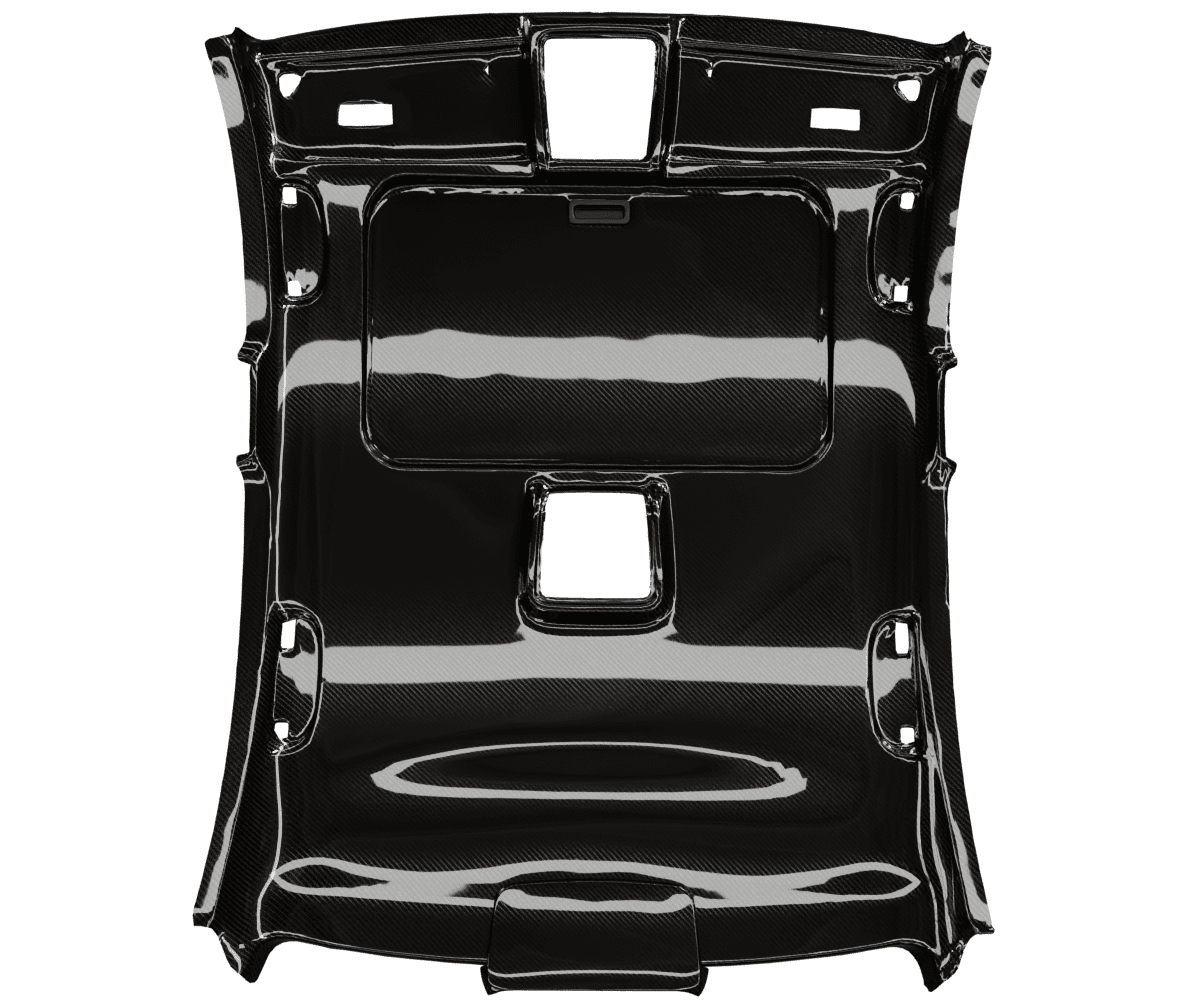

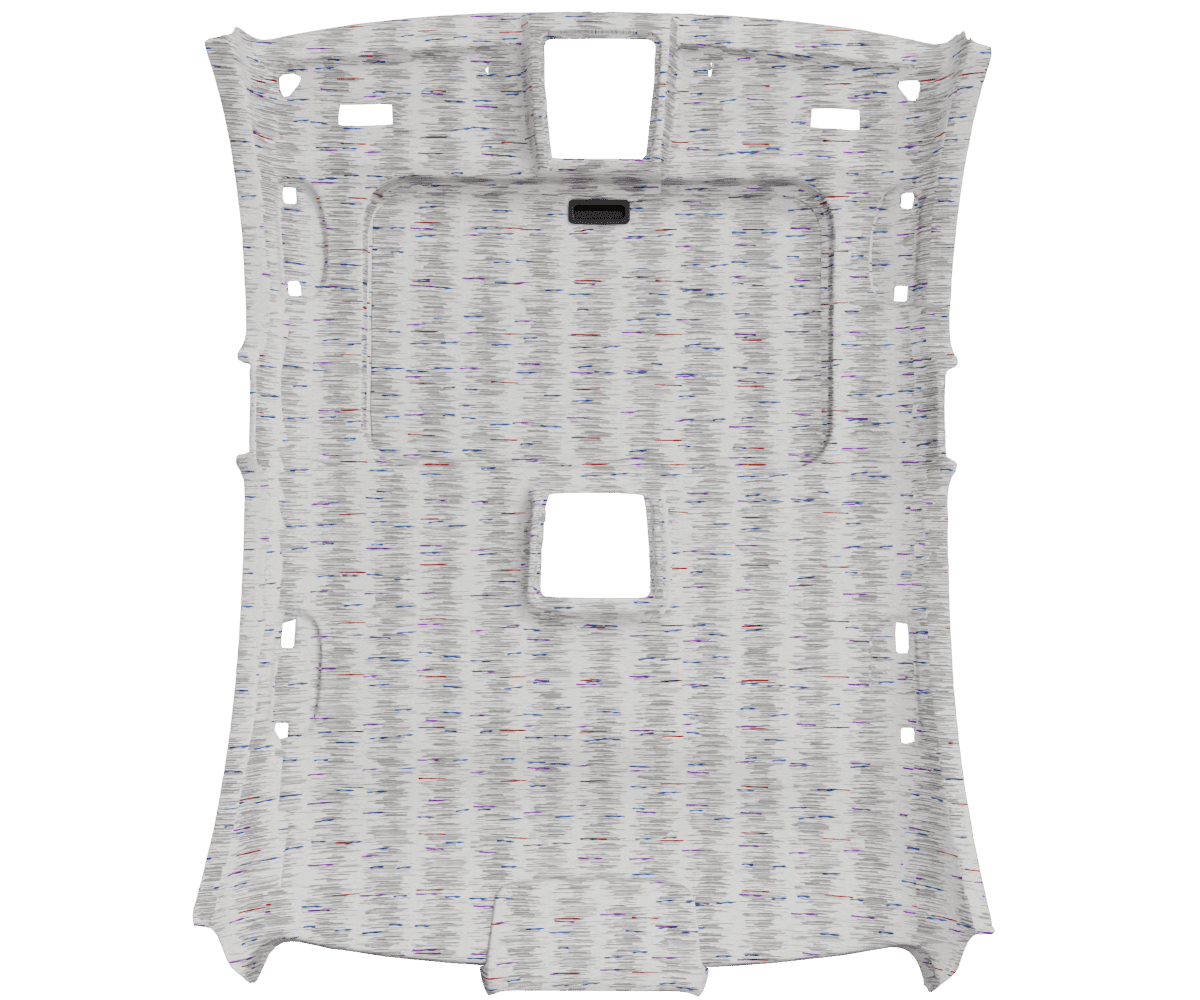

BMW 3-Series E90 Alcantara Headliner

Direct OEM-fit replacement headliner, custom-made in your choice of Alcantara, Forged Carbon Fiber, Carbon Fiber, or Nappa Leather. Built on OEM geometry for perfect fitment and clean reinstallation.

Part Numbers

• E90 Sedan — Non-Sunroof
  • Anthracite (S775A): 51448046361 (supersedes 51448036305)
  • Gray: 51446960552
  • Beige: 51446960553
• E90 Sedan — With Glass Roof (Sunroof, S403A)
  • Anthracite (S775A): 51448046413 (supersedes 51448036306)
  • Gray: 51446960556
  • Beige: 51446960557
• Rear Headliner Cover (3rd brake-light trim, E90)
  • Anthracite: 51448036266
  • Gray: 51447124904
  • Beige: 51447141052

Notes: Color/option codes shown for clarity. Use sunroof vs. non-sunroof variants as applicable. Part supersessions listed where provided by OEM catalogs.

Compatibility with other chassis'

These headliner assemblies fit the E90 Sedan (2006–2011) including 325i/xi, 328i/xi, 330i/xi, 335i/xi, 335d, and E90 M3 Sedan where noted. They are not interchangeable with E91 Touring, E92 Coupe, or E93 Convertible headliners due to different roof geometries and apertures.

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We upholster on an OEM-spec base for factory fit and finish, then trim in your chosen premium material. Stitching, perforation patterns, and accessory pieces (A/B/C pillars, grab handles, visors) can be matched or contrasted on request. Each build is made-to-order; lead times depend on material and option set.

Installation tools needed

• Trim clip tools and plastic wedges
• T20/T25 Torx drivers; Phillips screwdriver
• 8mm & 10mm sockets with ratchet and extensions
• Panel clip assortment (optional replacements)
• Torque-safe bit for seat belt upper anchors (for B-pillar trims)
• Contact adhesive (for recovering operations), masking tape, gloves

OEM+ parts, Direct swap of OEM parts

Designed as a direct swap using OEM attachment points. No cutting or drilling. Reuse factory harnesses, lights, and hardware unless replacing for cosmetic refresh.

• ECS Tuning — E90 headliner assemblies and rear cover (multiple part numbers)
• ECS Tuning — Headliner Anthracite 51448046361
• Hubauer — catalog notes with E90 molded headliner PN list & supersessions
• Schmiedmann — Rear headliner cover Anthracite 51448036266

Citations: ECS listings for 51448046361, 51446960552/053/056/057, and rear-cover 51447124904 & 51447141052 are shown on their E90 headliner category page; anthracite rear cover 51448036266 is confirmed on Schmiedmann and multiple BMW parts portals; Hubauer’s catalog page lists E90 molded headliner anthracite part numbers and their sunroof/non-sunroof variants with supersession notes. ([ECS Tuning][1]) [1]: https://www.ecstuning.com/BMW-E90/Interior/Headliner/Assembly/?utm_source=chatgpt.com "BMW E90 Headliner Assemblies"
