2008-2013 BMW 3-SERIES E9X SPLIT ARM REST

BMW E9X Alcantara Split Armrest

Part Numbers

OEM part number 51167901941 – Split center armrest assembly, black leather, fits E90/E92/E93 3-Series models (2006–2012) source

OEM part number 51167901943 – Split center armrest assembly, alternate variant, used in similar E9X configurations source

Additional OEM leather variants for split armrest include:

• 51-16-9-133-812 – Black Dakota Leather
• 51-16-7-137-571 – Beige Imitation Leather
• 51-16-9-133-813 – Gray Dakota Leather
• 51-16-9-134-494 – Saddle Brown Dakota Leather

These leather-specific numbers correspond to OEM options offered across E90/E91/E92/E93 variants source

Compatibility with other chassis'

These split armrests are intended for BMW E9X 3-Series sedans, coupes, and convertibles—covering E90, E91, E92, E93 (model years roughly 2006–2012). They are not compatible with E46 or F-Series platforms. Despite interior variations across body styles, this part numbers embrace all E9X formats and reflect accessory-level interchange.

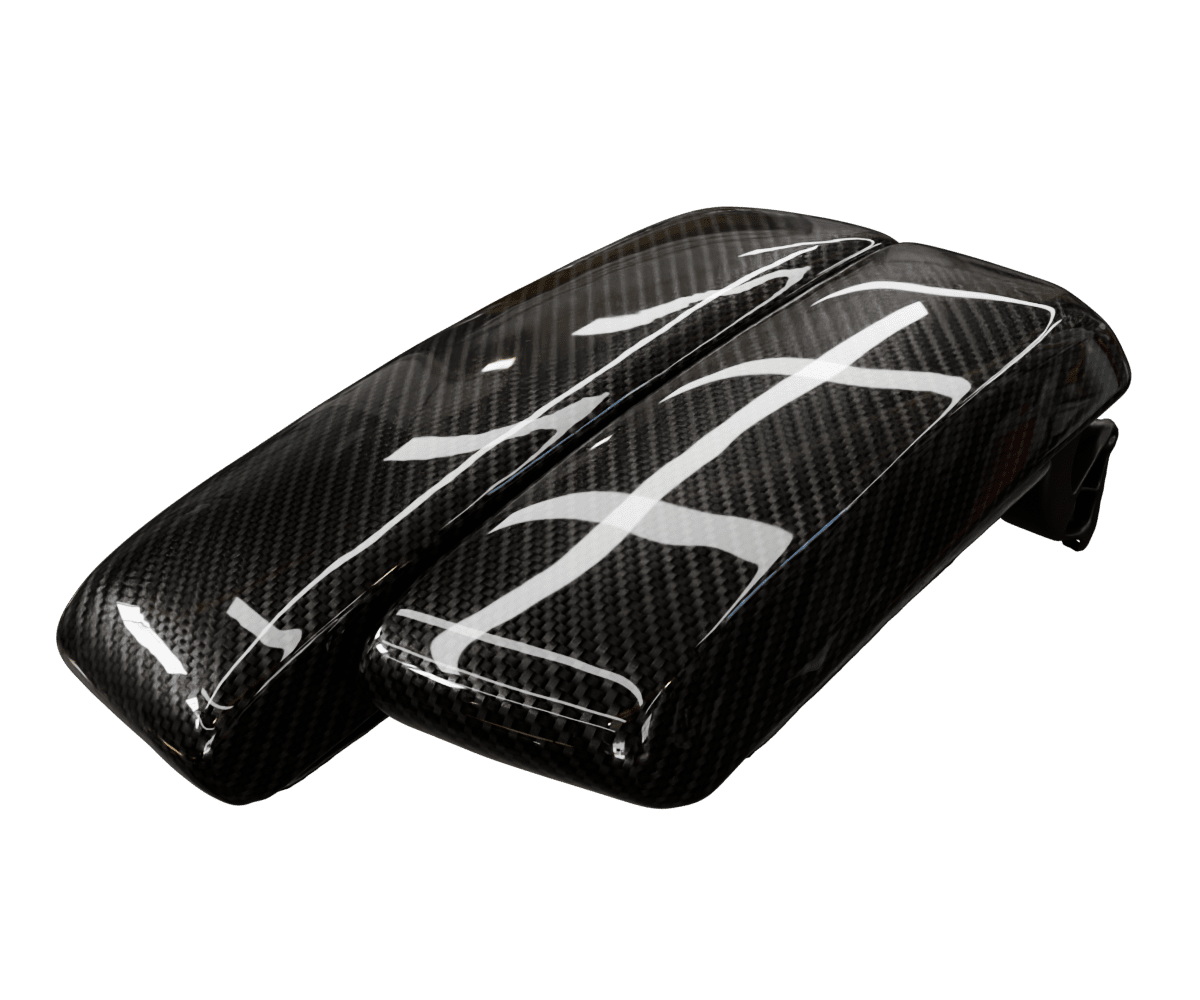

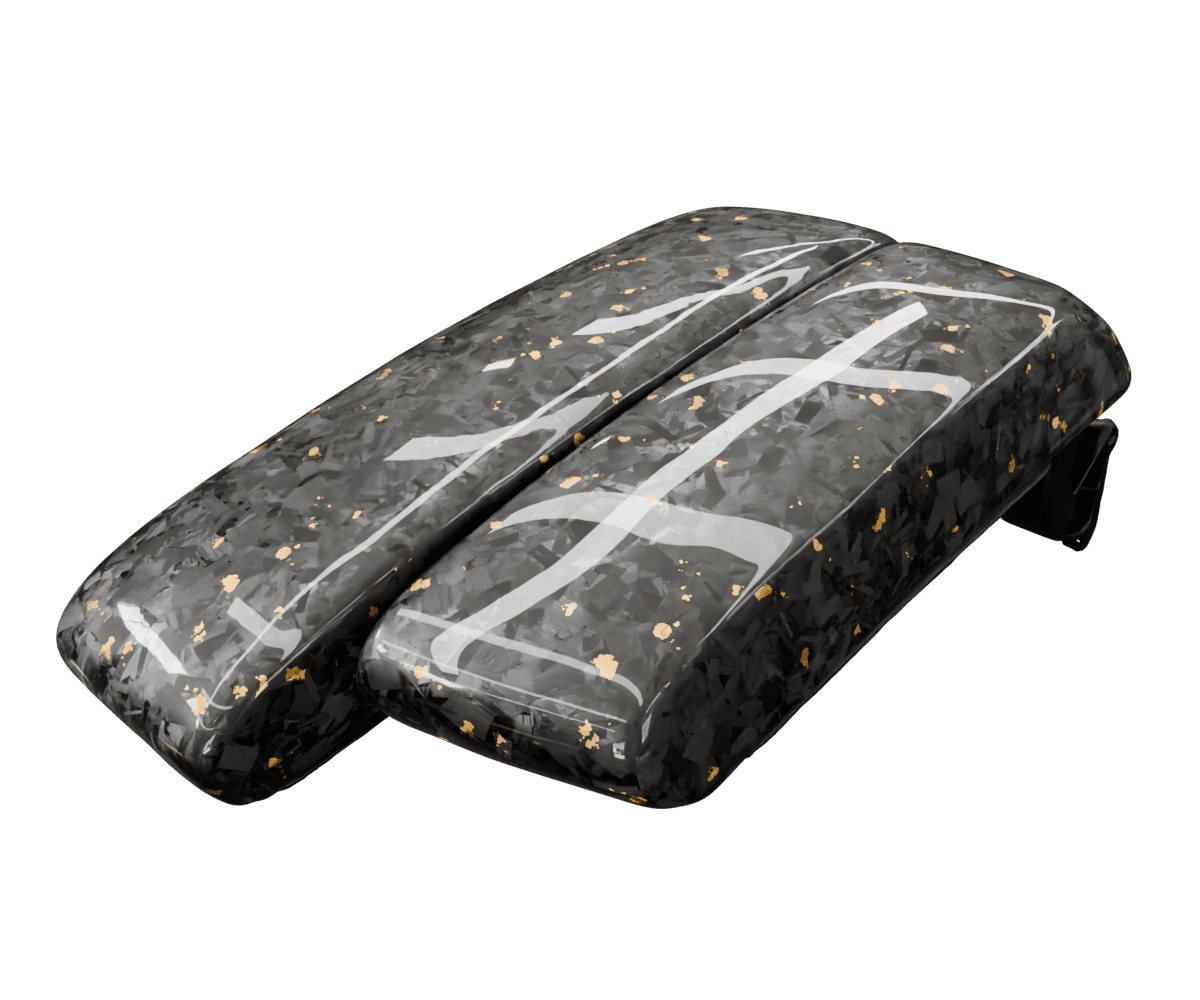

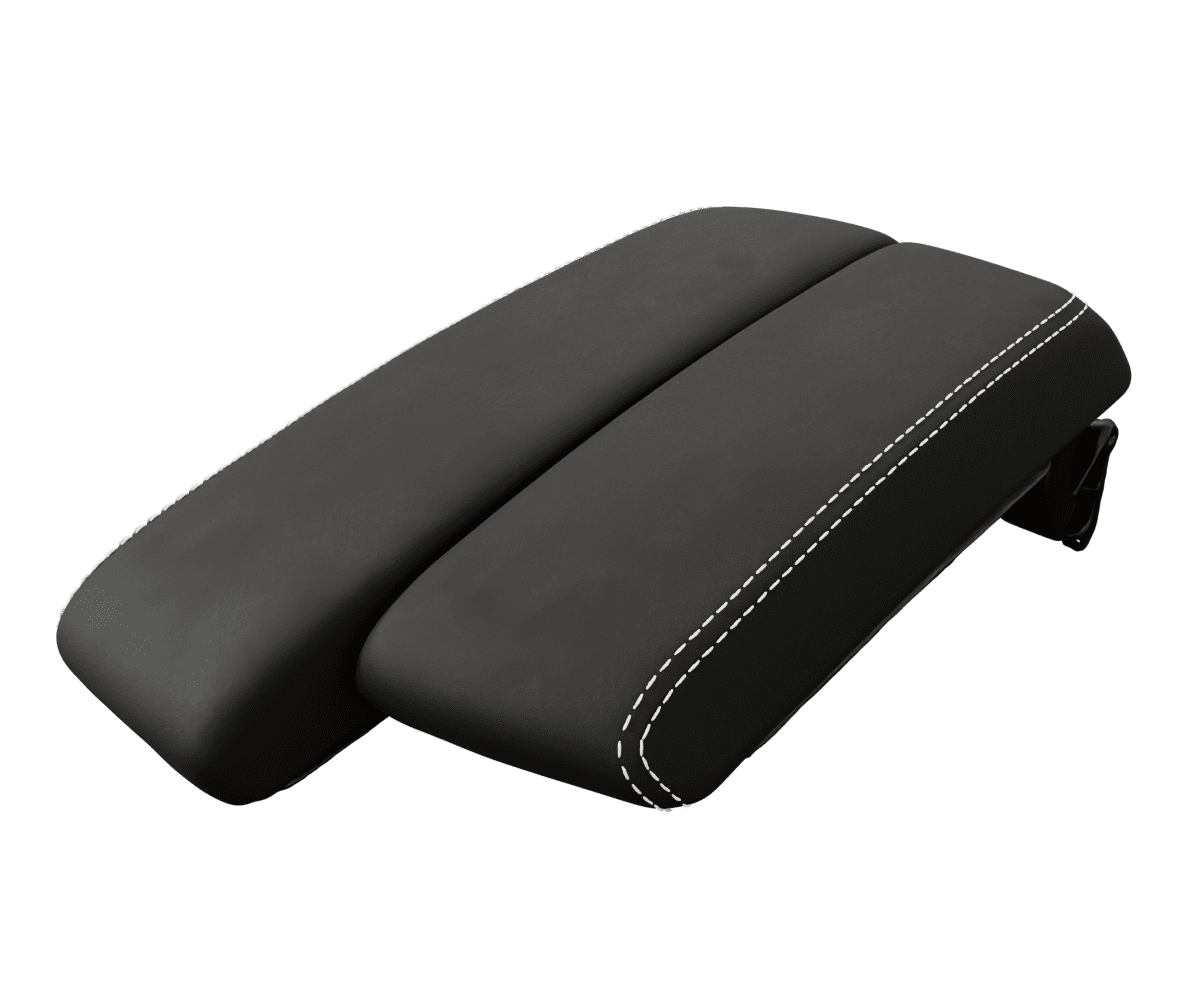

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We offer these armrests as OEM-direct replacements, meticulously rewrapped in premium materials—Alcantara, forged carbon fiber, carbon fiber, or Nappa leather. Every version preserves the original dimensions, mounting points, and sliding mechanism—just upgraded in feel and aesthetic.

Installation tools needed

• Plastic trim removal tools (to gently pry open the existing armrest)
• Torx screwdriver set (commonly T20 or T25, for mounting screws)
• Soft microfiber cloth (to protect finishes during handling)
• Optional: small replacement screws or clips in case any hardware gets damaged during removal

OEM+ parts, Direct swap of OEM parts

These armrests mate perfectly with the original factory configuration—same rails, same mechanism, same mounting location—but with elevated surface material. Slide out the original, snap in the upgraded version, and experience a refined cabin touch that’s mechanically faithful and indulgently tactile.
